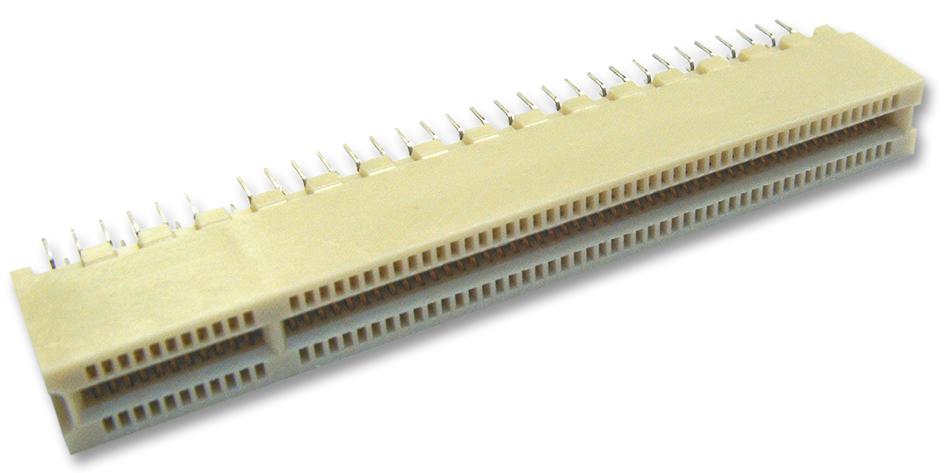

AMP - TE CONNECTIVITY - 5145154-4 - Card Edge Connector, Dual Side, 1.57 mm, 120 Contacts, Through Hole Mount, Straight, Solder
- Product Range: PCI Series
- No. of Contacts: 120Contacts
- Card Edge / Backplane Connector Type: Card Edge
- Pitch Spacing: 1.27mm
- Gender: Receptacle
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Row Pitch: 2.54mm
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (27-Jun-2018)
- Colour: White
- Connector Mounting Orientation: PCB
- Connector Type: Rectangular Power
- Contact Termination: Solder
- Current Rating: 1.1A
- Material: High Temperature Thermoplastic
- No. of Mating Cycles: 50
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 3.3V
