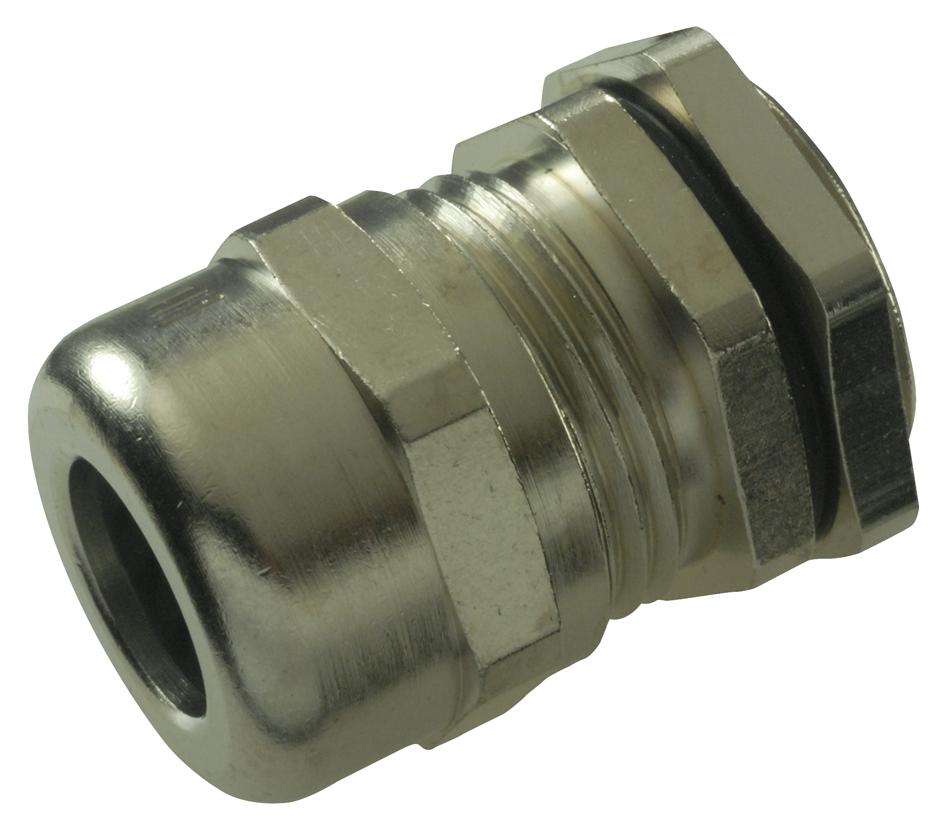

JACOB - 50.011-F - Cable Gland, PG11, 5 mm, 10 mm, Brass, Metallic - Nickel Finish
- Thread Size - Imperial: -
- Thread Size - Metric: PG11
- Cable Diameter Min: 5mm
- Cable Diameter Max: 10mm
- Cable Gland Material: Brass
- Gland Colour: Metallic - Nickel Finish
- IP / NEMA Rating: IP68
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- AF Body Width: 20mm
- AF Nut Width: 21mm
- Accessory Type: Gland
- Body Plating: Nickel
- Cable Diameter: 10mm
- Cable Diameter Max - Imperial: 0.394"
- Cable Diameter Max - Metric: 10mm
- Cable Diameter Min - Imperial: 0.197"
- Cable Diameter Min - Metric: 5mm
- Colour: Silver
- For Use With: Jacob PERFECT Cable
- Material: Brass
- Mounting Hole Dia: 18.6mm
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Thread Length: 6mm
- Thread Size: PG11
