Description

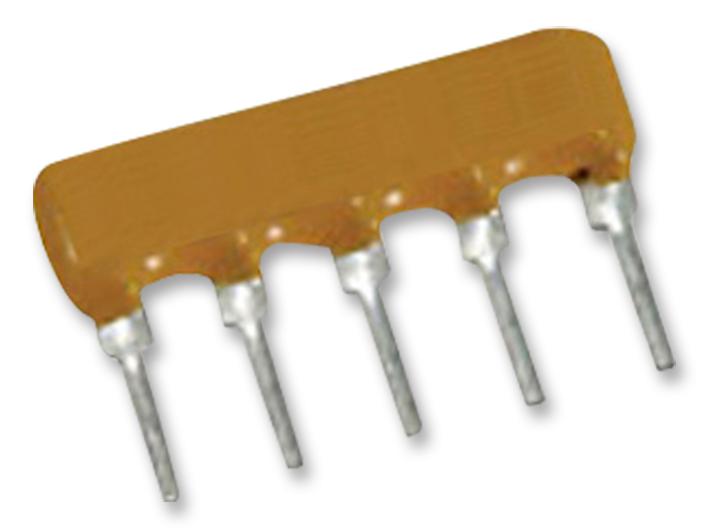

BOURNS - 4605X-101-332LF - Fixed Network Resistor, 3.3 kohm, Bussed, 4 Resistors, SIP, PC Pin, ± 2%
- Resistance: 3.3kohm
- Product Range: 4600X Series
- No. of Elements: 4Elements
- Network Circuit Type: Bussed
- Resistor Case Style: SIP
- No. of Pins: 5Pins
- Voltage Rating: 100V
- Power Rating per Element: 200mW
- Resistance Tolerance: ± 2%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Power Rating: 630mW
- Resistance R1: 3.3kohm
- Resistor Mounting: Through Hole
