Description

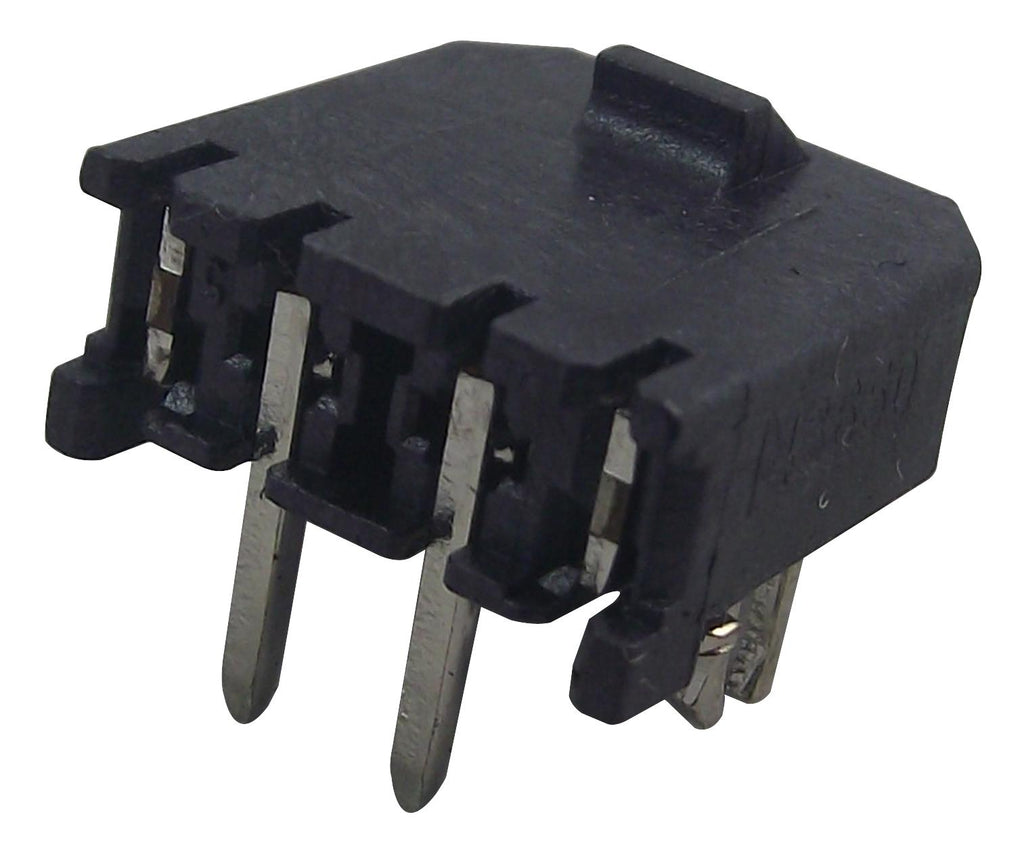

MOLEX - 436500203 - Pin Header, Right Angle, Power, 3 mm, 1 Rows, 2 Contacts, Through Hole Right Angle
- Pitch Spacing: 3mm
- No. of Contacts: 2Contacts
- Gender: Header
- Product Range: Micro-Fit 3.0 43650 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Current per Contact Max: 5A
- Flammability Rating: 94V-0
- Material: High Temperature Thermoplastic
- No. of Mating Cycles: 30
- Operating Temperature Max: +105°C
- Operating Temperature Min: -40°C
- Withstand Voltage: 250V
