Description

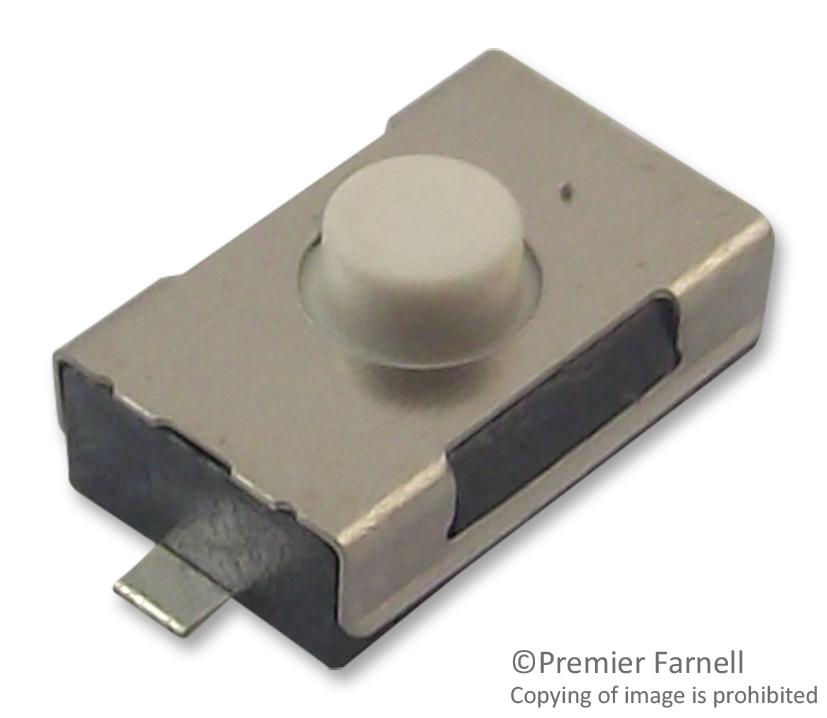

WURTH ELEKTRONIK - 434111025826 - Tactile Switch, WS-TASV, Top Actuated, Surface Mount, Round Button, 260 gf, 50mA at 12VDC
- Product Range: WS-TASV Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Round Button
- Actuating Force: 260gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 6mm x 3.8mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Raised
- Actuator / Cap Colour: White
- Contact Configuration: SPST
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Nom: 12V
- External Depth: 3.9mm
- External Length / Height: 2.5mm
- External Width: 6mm
- Height: 2.5mm
- Insulation Resistance: 100Mohm
- No. of Mechanical Operations: 30000
- Operating Force: 260N
- Switch Terminals: Solder
