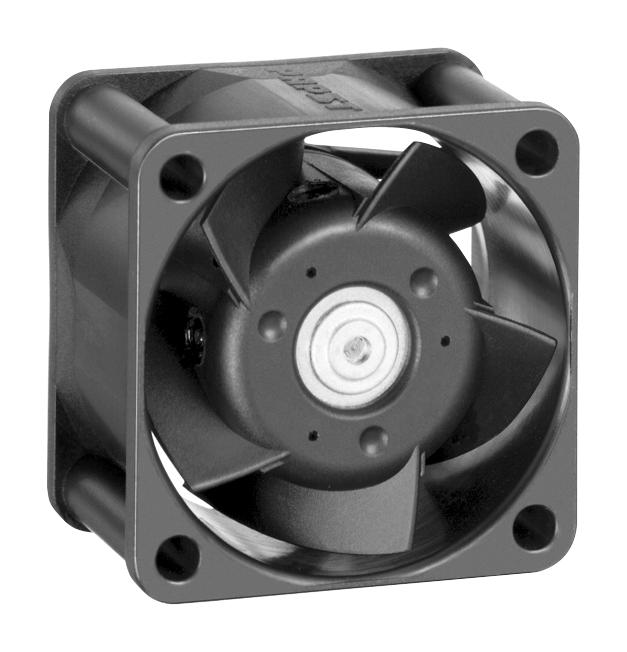

EBM-PAPST - 414J/2HH - DC Axial Fan, 24 V, Square, 40 mm, 25 mm, Ball Bearing, 14.1 CFM
- Supply Voltage: 24V
 - Current Type: DC
 - Fan Frame Size: 40mm
 - External Depth: 25mm
 - Noise Rating: 46dBA
 - Flow Rate - Imperial: 14.1cu.ft/min
 - Flow Rate - Metric: 24m³/h
 - Bearing Type: Ball
 - Power Connection Type: 3 Lead Wires, Sensor Output
 - Current Rating: -
 - Product Range: 400J Series
 - Power Rating: -
 - IP Rating: -
 - SVHC: No SVHC (15-Jan-2019)
 - Approval Bodies: CSA, UL, VDE
 - Current Consumption: 149mA
 - External Height: 40mm
 - External Width: 40mm
 - Fixing Centres: 32mm
 - Fixing Hole Diameter: 3.5mm
 - Frame Dimensions: 40mm x 40mm x 25mm
 - Input Voltage Max: 27V
 - Input Voltage Min: 18V
 - Lead Length: 310mm
 - Operating Temperature Max: 55°C
 - Operating Temperature Min: -20°C
 - Operating life Time: 55000h
 - Power Consumption: 4.1W
 - Speed Range Max: 13000rpm
 - Supply Voltage DC Max: 27V
 - Supply Voltage DC Min: 18V
 - Weight: 50g
