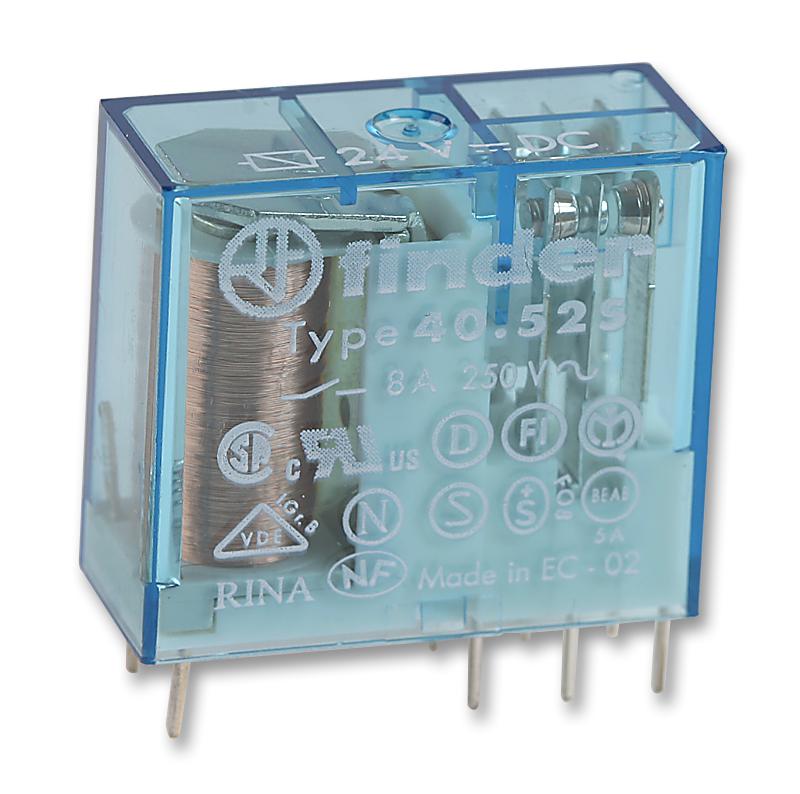

FINDER - 40.52.7.024.0000 - General Purpose Relay, 40 Series, Power, DPDT, 24 VDC, 8 A
- Contact Configuration: DPDT
 - Coil Voltage: 24VDC
 - Contact Current: 8A
 - Product Range: 40 Series
 - Relay Mounting: Through Hole
 - Coil Type: DC Sensitive
 - Contact Voltage VAC: 250VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: 30V
 - Contact Material: Silver Nickel
 - Coil Resistance: 1.15kohm
 - SVHC: No SVHC (15-Jan-2019)
 - Approvals & Standards: CSA, UL, VDE
 - Coil Current: 21mA
 - Coil Voltage VDC Nom: 24V
 - Contact Current Max: 15A
 - Contact Voltage AC Nom: 230V
 - Current Rating: 8A
 - External Depth: 25mm
 - External Height: 29mm
 - External Width: 12.4mm
 - Nom Operating Power: 500mW
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -40°C
 - Relay Type: Power - General Purpose
