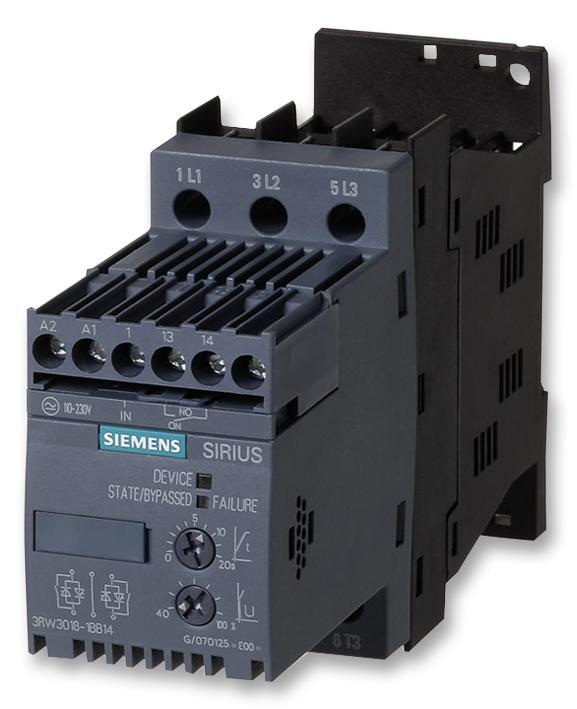

SIEMENS - 3RW3018-1BB14 - Soft Starter, SIRIUS, Size S00, 17.6A, 7.5kW/400V, 200-480 V ac, Screw Terminals
- Supply Voltage Min: 200VAC
- Supply Voltage Max: 480VAC
- No. of Phases: Three Phase
- Power Rating: 7.5kW
- Current Rating: 17.6A
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE, CSA, IEC, UL
- Control Voltage AC Max: 230V
- Control Voltage AC Min: 110V
- External Depth: 93mm
- External Length / Height: 95mm
- External Width: 45mm
- For Use With: Soft Starting of 3-phase Asynchronous Motor
- IP / NEMA Rating: IP20
- Input Voltage Max: 480V
- Input Voltage Min: 200V
- Load Current: 17.6A
- Load Current Max: 17.6A
- Operating Temperature Max: 60°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +60°C
- Output Power: 7.5kW
- Supply Voltage Range: 200V AC to 480V AC
