Description

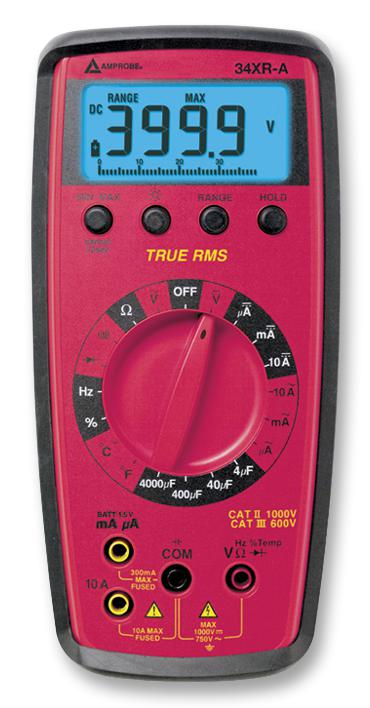

BEHA-AMPROBE - 34XR-A - Digital Multimeter, 3999 Count, True RMS, Auto Range, 3.75 Digit
- DMM Functions: Current, Voltage, Capacitance, Frequency, Resistance, Temperature
 - Current Measure AC Max: 10A
 - Current Measure DC Max: 10A
 - Voltage Measure AC Max: 750V
 - Voltage Measure DC Max: 1kV
 - Resistance Measure Max: 40Mohm
 - DMM Response Type: True RMS
 - Display Count: 3999
 - No. of Digits: 3.75
 - Range Selection: Auto
 - Manufacturer Warranty: 3 Years
 - Product Range: -
 - SVHC: No SVHC (15-Jun-2015)
 - Approval Bodies: IEC
 - Battery Lifetime: 300h
 - Capacitance Max: 4000µF
 - Capacitance Measuring Range: 4µF to 4mF
 - Current Max: 10A
 - Current Measuring Range AC: 400µA to 10A
 - Current Measuring Range DC: 400µA to 10A
 - Current Range AC: 400µA to 10A
 - Current Range DC: 400µA to 10A
 - DMM Type: Hand Held
 - Duty Cycle (%): 90%
 - External Depth: 60mm
 - External Length / Height: 195mm
 - External Width: 92mm
 - Ranging: Auto
 - Resistance: 40Mohm
 - Temperature Measuring Range: -20°C to +1000°C
 - Voltage Measuring Range AC: 400mV to 750V
 - Voltage Measuring Range DC: 400mV to 1kV
 - Voltage Rating V DC: 1000V
 - Weight: 400g
