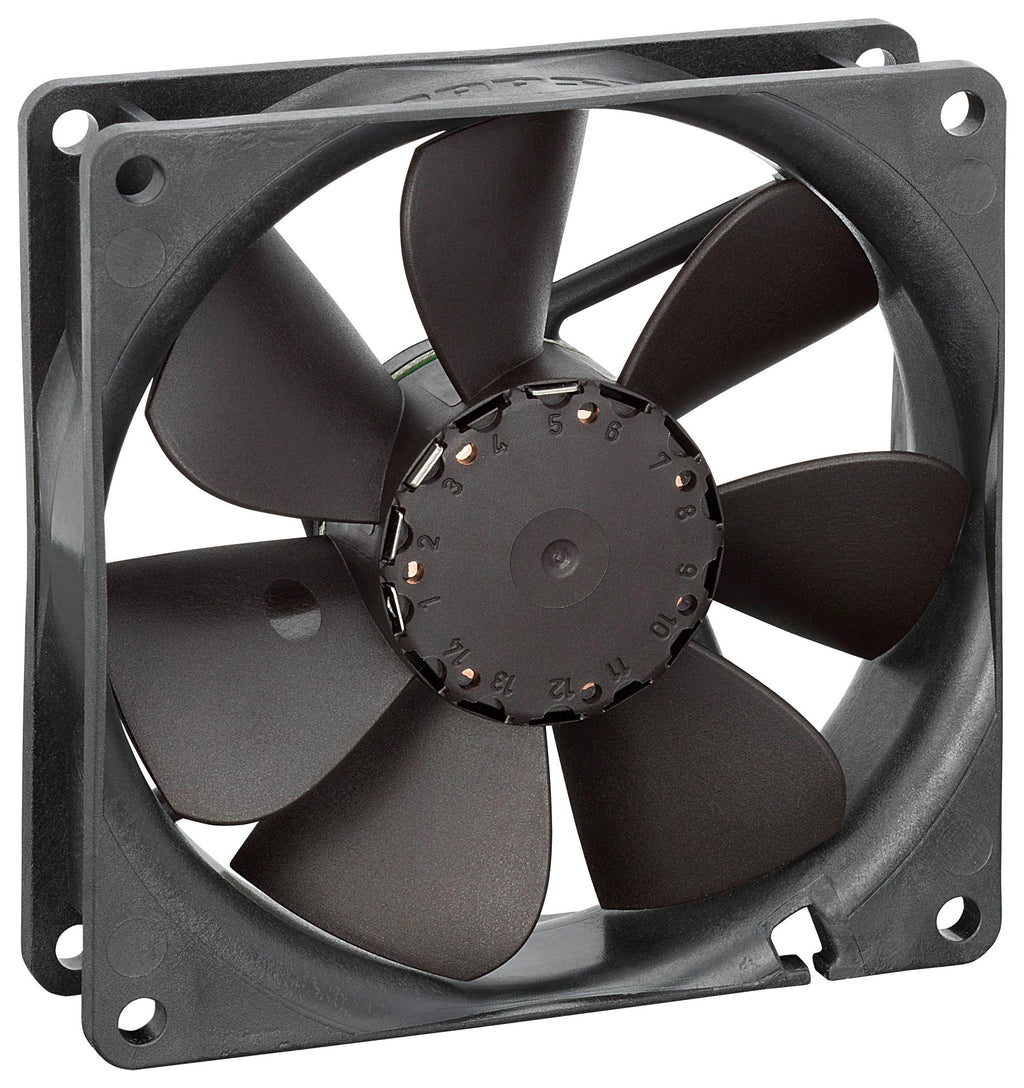

EBM-PAPST - 3414NGL - DC Axial Fan, 24 V, Square, 92 mm, 25 mm, Sleeve Bearing, 35.9 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 92mm
- External Depth: 25mm
- Noise Rating: 23dBA
- Flow Rate - Imperial: 35.9cu.ft/min
- Flow Rate - Metric: 61m³/h
- Bearing Type: Sleeve
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 3400N Series
- Power Rating: -
- IP Rating: IP54, IP68
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- External Height: 92mm
- External Width: 92mm
- Fixing Centres: 82.5mm
- Fixing Hole Diameter: 4.5mm
- Frame Dimensions: 92mm x 92mm x 25mm
- Input Voltage Max: 28V
- Input Voltage Min: 18V
- Lead Length: 310mm
- Panel Cutout Diameter: 58mm
- Power Consumption: 1.4W
- Supply Voltage DC Max: 28V
- Supply Voltage DC Min: 18V
- Type: Super Low Noise,92mm
