3224W-1-503E Trimmer, 11 Turn, 50KR, 0.25W Bourns

BOURNSSKU: 3224W-1-503E Order code: 1612575

Price:
Sale price€7,91

Tax included Shipping calculated at checkout

Stock:
In stock (388 units), ready to be shipped

Documents et téléchargements

Description

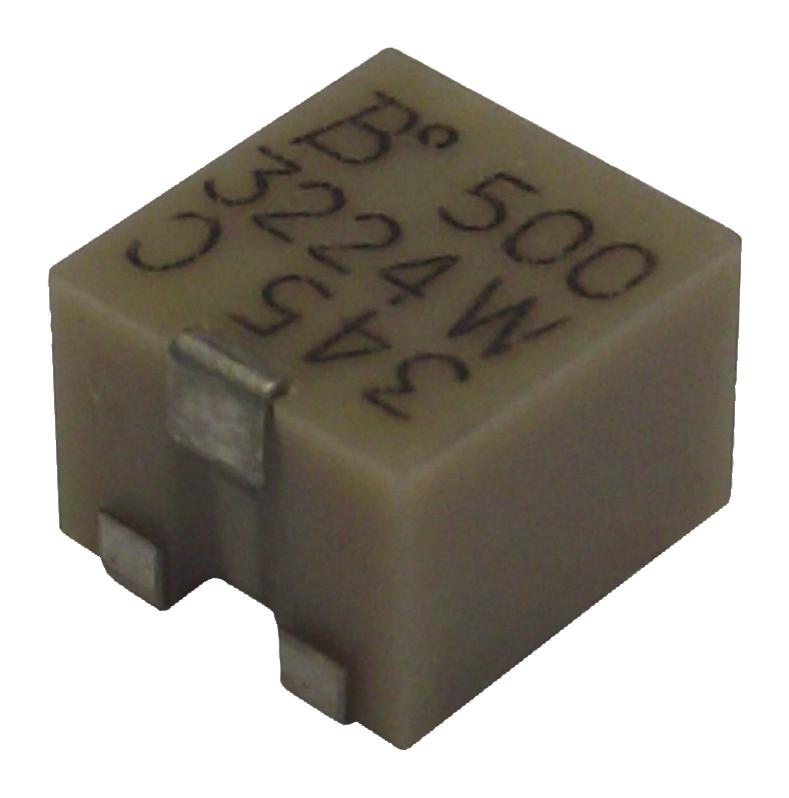

BOURNS - 3224W-1-503E - Trimpot, Multi Turn, Cermet, Top Adjust, 50 kohm, Surface Mount, 12 Turns

  • Track Resistance: 50kohm
  • No. of Turns: 11Turns
  • Potentiometer Mounting: Surface Mount Device
  • Product Range: Trimpot 3224 Series
  • Power Rating: 250mW
  • Resistance Tolerance: ± 10%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: AEC-Q200
  • MSL: -
  • SVHC: Lead (15-Jan-2019)
  • Adjustment Type: Screwdriver Slot
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Resistor Element Material: Cermet
  • Track Taper: Linear
  • Voltage Rating: 300V
