Description

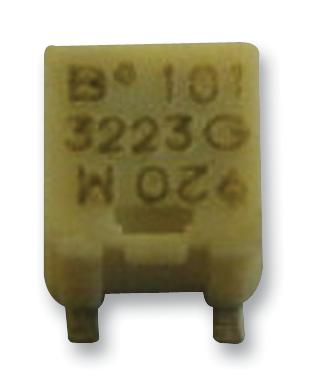

BOURNS - 3223G-1-101E - Trimpot, Multi Turn, Cermet, Side Adjust, 100 ohm, Surface Mount, 11 Turns
- Track Resistance: 100ohm
- No. of Turns: 11Turns
- Potentiometer Mounting: Surface Mount Device
- Product Range: 3223G Series
- Power Rating: 125mW
- Resistance Tolerance: ± 20%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Resistor Element Material: Cermet
- Track Taper: Linear
- Voltage Rating: 200V
