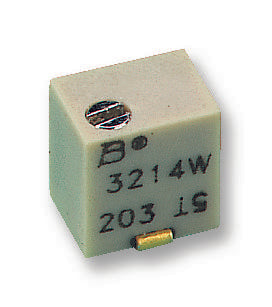

BOURNS - 3214W-1-101E - Trimpot, Multi Turn, Cermet, Top Adjust, 100 ohm, Surface Mount, 5 Turns
- Track Resistance: 100ohm
- No. of Turns: 5Turns
- Potentiometer Mounting: Surface Mount Device
- Product Range: Trimpot 3214 Series
- Power Rating: 250mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: AEC-Q200
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- External Depth: 3.9mm
- External Length / Height: 5.1mm
- External Width: 4.8mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Resistance: 100ohm
- Resistor Element Material: Cermet
- Resistor Mounting: Surface Mount Device
- Track Taper: Linear
- Voltage Rating: 500V
