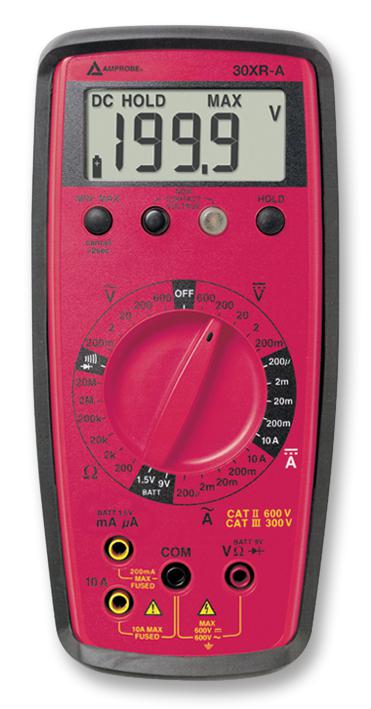

BEHA-AMPROBE - 30XR-A - Manual Ranging Digital Multimeter, 1999 Count, True RMS, Manual Range, 3.5 Digit
- DMM Functions: Current, Voltage, Resistance
 - Current Measure AC Max: 10A
 - Current Measure DC Max: 10A
 - Voltage Measure AC Max: 600V
 - Voltage Measure DC Max: 600V
 - Resistance Measure Max: 20Mohm
 - DMM Response Type: True RMS
 - Display Count: 1999
 - No. of Digits: 3.5
 - Range Selection: Manual
 - Manufacturer Warranty: 1 Year
 - Product Range: -
 - SVHC: No SVHC (15-Jun-2015)
 - Accuracy %: 1%
 - Approval Bodies: IEC
 - Battery Lifetime: 200h
 - Capacitance Max: 200µF
 - Current Max: 10A
 - Current Measuring Range AC: 200µA to 10A
 - Current Measuring Range DC: 200µA to 10A
 - Current Range AC: 200µA to 10A
 - Current Range DC: 200µA to 10A
 - DMM Type: Hand Held
 - External Depth: 60mm
 - External Length / Height: 196mm
 - External Width: 92mm
 - Ranging: Manual
 - Resistance: 20Mohm
 - Voltage Measuring Range AC: 200mV to 600V
 - Voltage Measuring Range DC: 200mV to 600V
 - Voltage Rating V DC: 600V
 - Voltage Rating VAC: 600V
 - Weight: 426g
