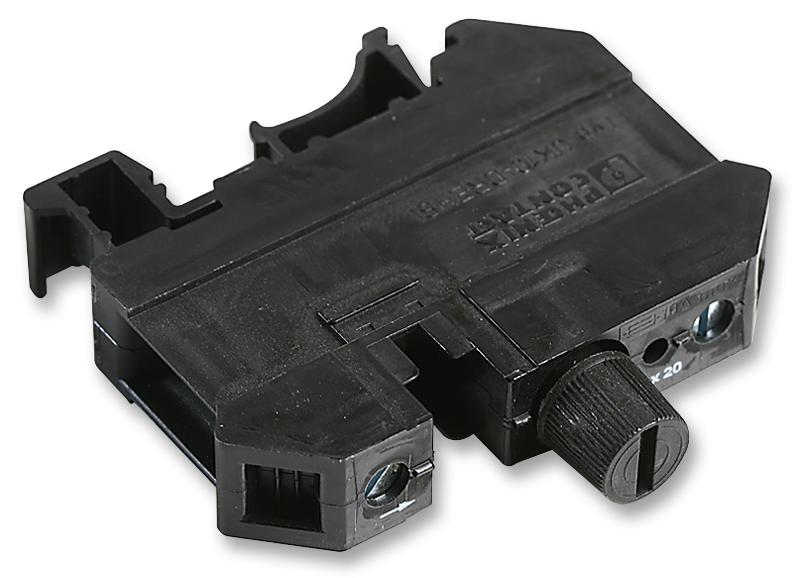

3005109 Terminal Block, Fused, 2Pos, 6AWG Phoenix Contact

PHOENIX CONTACTSKU: 3005109 Order code: 3042236

Price:
Sale price€22,16

Tax included Shipping calculated at checkout

Stock:
In stock (143 units), ready to be shipped

Documents et téléchargements

Description

PHOENIX CONTACT - 3005109 - Fused Terminal Block, 2 Ways, 24AWG to 6AWG, 16 mm², Screw, 10 A, 500 V

  • No. of Positions: 2Ways
  • Wire Size (AWG): 24AWG to 6AWG
  • Conductor Area CSA: 16mm²
  • Wire Connection Method: Screw
  • Rated Current: 10A
  • Rated Voltage: 500V
  • Fuse Size Held: 5mm x 20mm
  • Product Range: UK
  • SVHC: Lead (15-Jan-2019)
  • Colour: Black
  • Connector Mounting: DIN Rail Mount
  • External Width: 12mm
  • Pitch Spacing: 12mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 16mm²
  • Wire Area Size Min: 0.5mm²
  • Wire Size AWG Max: 6AWG
  • Wire Size AWG Min: 24AWG
  • Working Voltage: 800V
