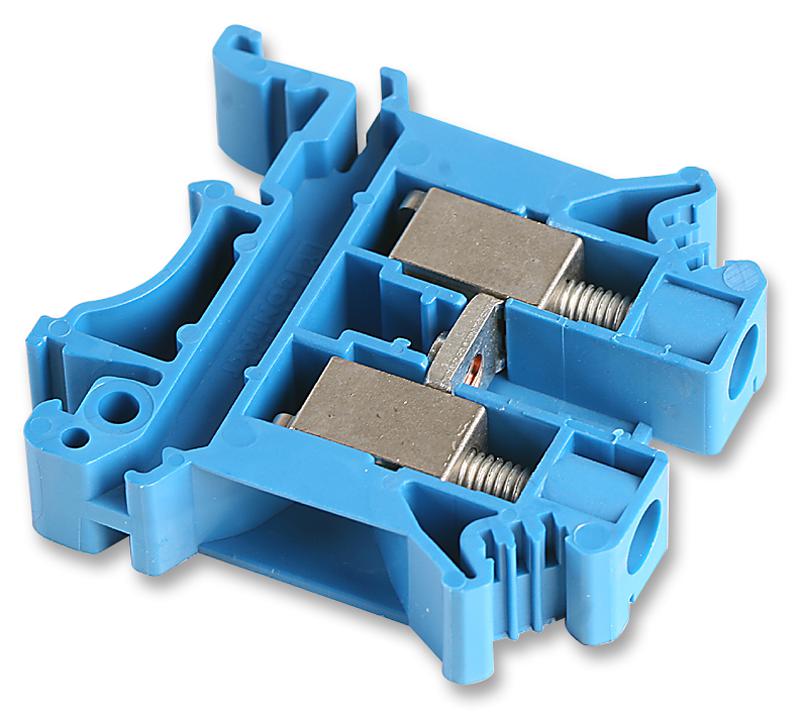

3005086 Terminal Block, DIN Rail, 2Pos, 12AWG Phoenix Contact

PHOENIX CONTACTSKU: 3005086 Order code: 3042959

Price:
Sale price€5,92

Tax included Shipping calculated at checkout

Stock:
In stock (22 units), ready to be shipped

Documents et téléchargements

Description

PHOENIX CONTACT - 3005086 - DIN Rail Mount Terminal Block, 2 Ways, 20 AWG, 6 AWG, 16 mm², Screw, 57 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 20AWG
  • Wire Size AWG Max: 6AWG
  • Conductor Area CSA: 16mm²
  • Wire Connection Method: Screw
  • Rated Current: 57A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: UK
  • SVHC: Lead (15-Jan-2019)
  • Approvals / Standards: EN 50281, EN 60979, IEC 60079
  • Colour: Blue
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Width: 10.2mm
  • Flexible Wire Area Size Max: 10mm²
  • Pitch Spacing: 10.2mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 10mm²
  • Wire Area Size Min: 0.5mm²
  • Working Voltage: 800V
