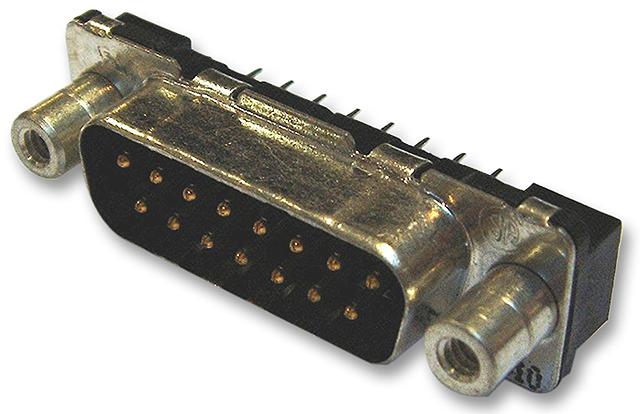

AMP - TE CONNECTIVITY - 3-338310-2 - D Sub Connector, DA15, Standard, Plug, AMPLIMITE HDP-20, 15 Contacts, DA, Solder
- No. of Contacts: 15Contacts
- Gender: Plug
- Contact Termination Type: Solder
- D Sub Shell Size: DA
- Product Range: AMPLIMITE HDP-20 Series
- Connector Body Material: Steel Body
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- SVHC: Lead (15-Jan-2019)
- Body Plating: Tin
- Case Material: Steel
- Colour: Black
- Connector Mounting: Through Hole Mount
- Contact Termination: Solder
- Current Rating: 6A
- D Sub Connector Type: Standard
- DC Current Max: 6A
- Flammability Rating: UL94V-0
- Material: Glass Filled Polyester
- No. of Mating Cycles: 400
- Standard: DIN 41652 Level 2
- Termination Method: Through Hole
- Working Voltage: 250V
