Description

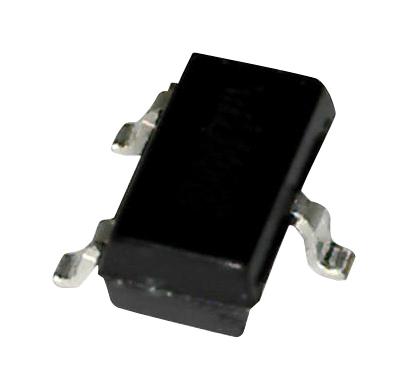

ONSEMI - 2V7002KT1G - Power MOSFET, AEC-Q101, N Channel, 60 V, 380 mA, 1.19 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 380mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 1.19ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1V
- Power Dissipation Pd: 420mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
