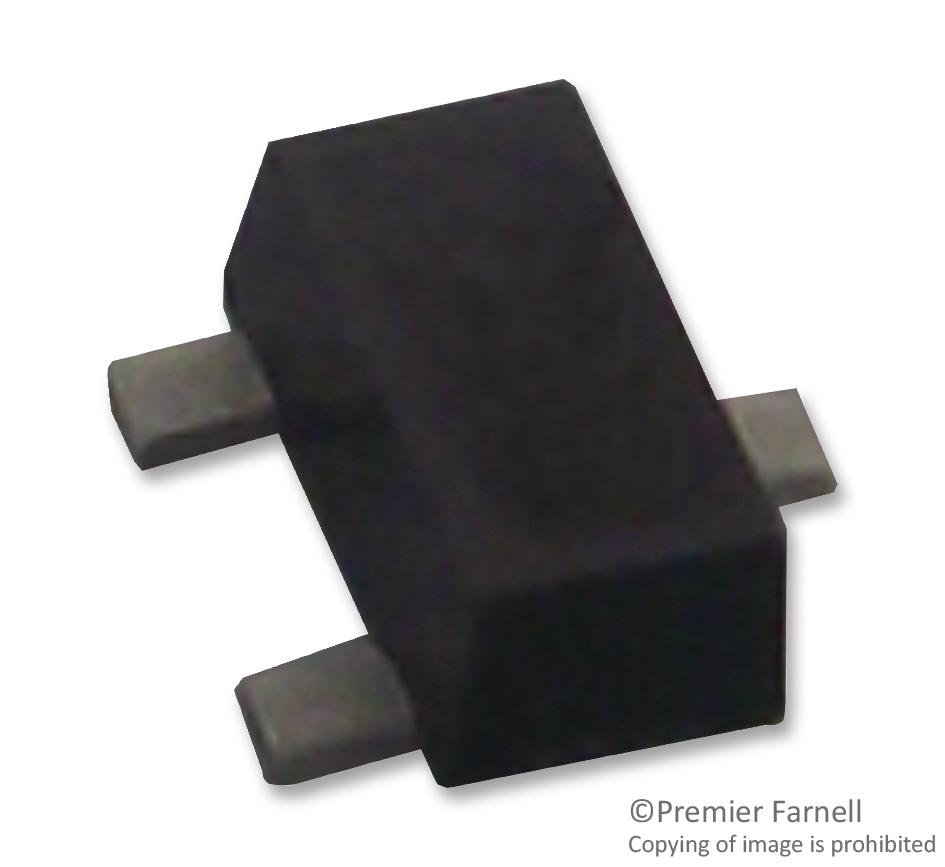

2SC4617TLS Transistor, NPN, 50V, EMT3 ROHM

ROHMSKU: 2SC4617TLS Order code: 1680130

Price:
Sale price€0,47

Tax included Shipping calculated at checkout

Stock:
In stock (4870 units), ready to be shipped

Documents et téléchargements

Description

ROHM - 2SC4617TLS - Bipolar (BJT) Single Transistor, NPN, 50 V, 50 mA, 150 mW, SOT-416, Surface Mount

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Transition Frequency ft: 180MHz
  • Power Dissipation Pd: 150mW
  • DC Collector Current: 50mA
  • DC Current Gain hFE: 270hFE
  • Transistor Case Style: SOT-416
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 400mV
  • Current Ic Continuous a Max: 50mA
  • Gain Bandwidth ft Typ: 180MHz
  • Hfe Min: 270
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Transistor Type: General Purpose
