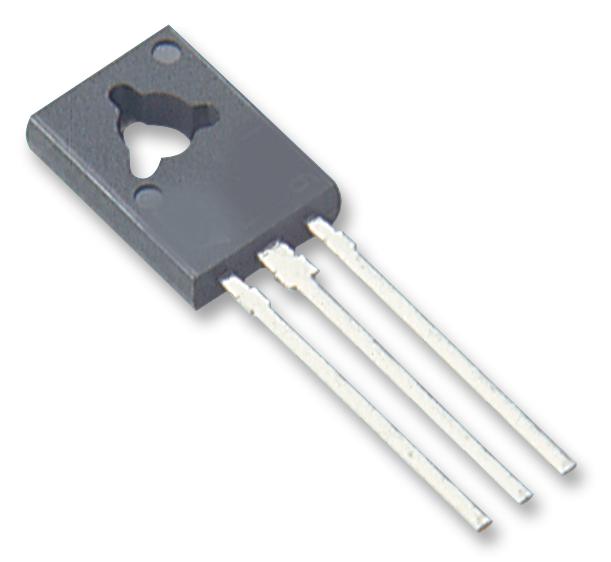

ONSEMI - 2N4920G - Bipolar (BJT) Single Transistor, General Purpose, PNP, 80 V, 1 A, 30 W, TO-225, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 80V
- Transition Frequency ft: 3MHz
- Power Dissipation Pd: 30W
- DC Collector Current: 1A
- DC Current Gain hFE: 10hFE
- Transistor Case Style: TO-225
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: 2NXXXX Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 600mV
- Device Marking: 2N4920
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 3MHz
- Gain Bandwidth ft Typ: 3MHz
- Hfe Min: 25
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Voltage Vcbo: 80V
