Description

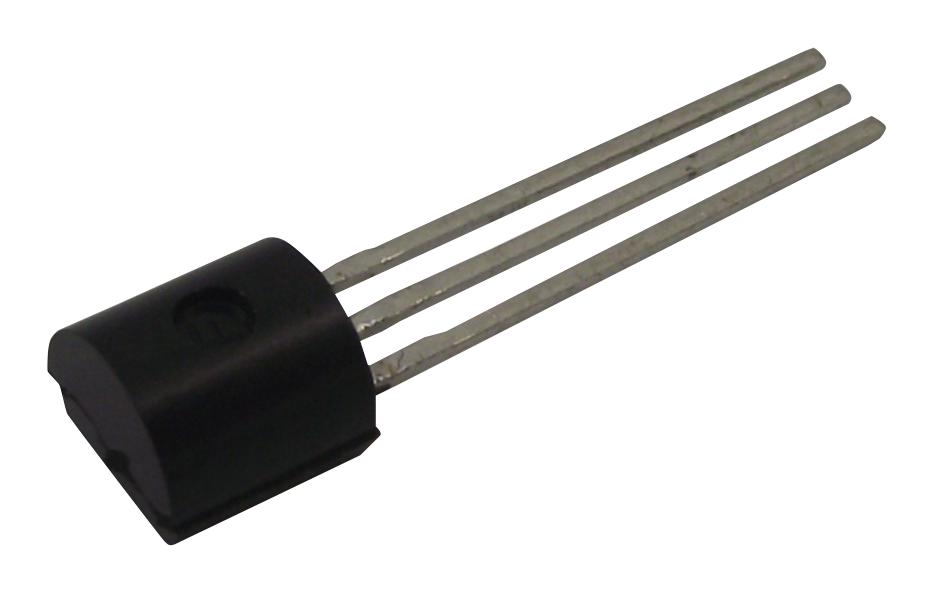

ONSEMI - 2N3904BU - Bipolar (BJT) Single Transistor, NPN, 40 V, 200 mA, 625 mW, TO-92, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 40V
- Transition Frequency ft: 300MHz
- Power Dissipation Pd: 625mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 100hFE
- Transistor Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 300mV
- Current Ic Continuous a Max: 100mA
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 30
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Through Hole
- Transistor Type: General Purpose
