Description

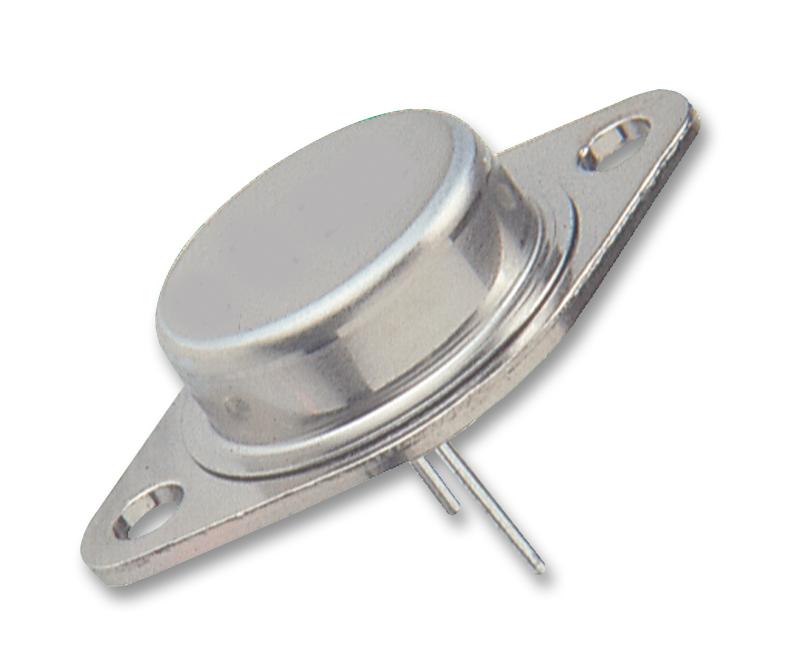

ONSEMI - 2N3773G - Bipolar (BJT) Single Transistor, General Purpose, NPN, 140 V, 16 A, 150 W, TO-204AA, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 140V
- Transition Frequency ft: -
- Power Dissipation Pd: 150W
- DC Collector Current: 16A
- DC Current Gain hFE: 4hFE
- Transistor Case Style: TO-204AA
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Product Range: 2NXXXX Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Av Current Ic: 16A
- Collector Emitter Saturation Voltage Vce(on): 1.4V
- Continuous Collector Current Ic Max: 16A
- Current Ic Continuous a Max: 16A
- Current Ic hFE: 8A
- Full Power Rating Temperature: 25°C
- Hfe Min: 15
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Power Dissipation Ptot Max: 150W
- Voltage Vcbo: 160V
