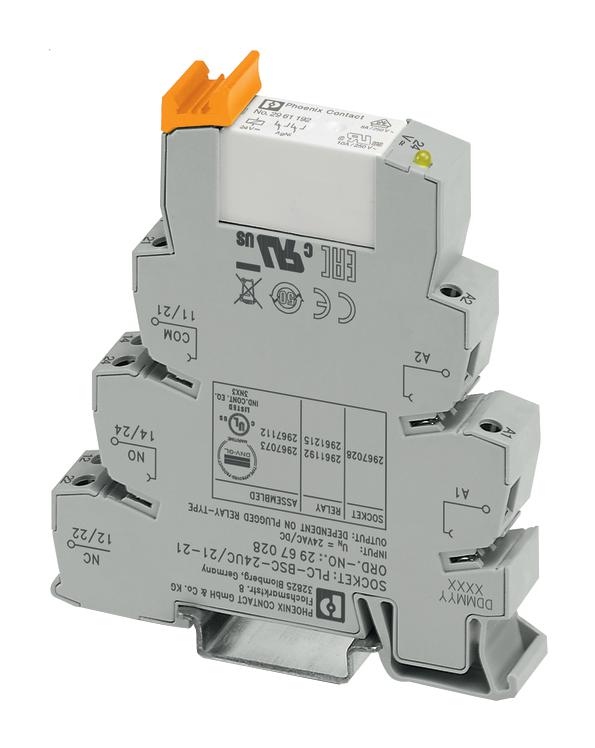

2967073 Relay, DPDT, 250VAC, 6a Phoenix Contact

PHOENIX CONTACTSKU: 2967073 Order code: 2315522

Price:
Sale price€32,12

Tax included Shipping calculated at checkout

Stock:
In stock (14 units), ready to be shipped

Documents et téléchargements

Description

PHOENIX CONTACT - 2967073 - General Purpose Relay, PLC Series, Interface, Non Latching, DPDT, 24 V, 6 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24V
  • Contact Current: 6A
  • Product Range: PLC Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 250VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: -
  • SVHC: No SVHC (15-Jan-2018)
  • Coil Voltage VAC Nom: 24V
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 250V
  • External Depth: 94mm
  • External Height: 80mm
  • External Width: 14mm
  • Relay Type: Interface
