Description

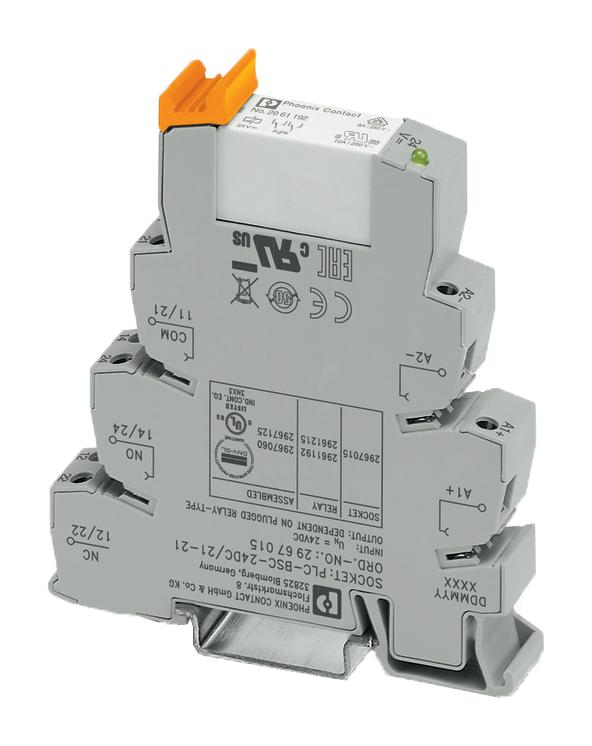

PHOENIX CONTACT - 2967060 - General Purpose Relay, PLC Series, Interface, Non Latching, DPDT, 24 VDC, 6 A
- Contact Configuration: DPDT
- Coil Voltage: 24VDC
- Contact Current: 6A
- Product Range: PLC Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 250VDC
- Contact Material: Silver Nickel
- Coil Resistance: -
- SVHC: Lead (15-Jan-2019)
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 6A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 250V
- External Depth: 94mm
- External Height: 80mm
- External Width: 14mm
- Relay Type: Interface
