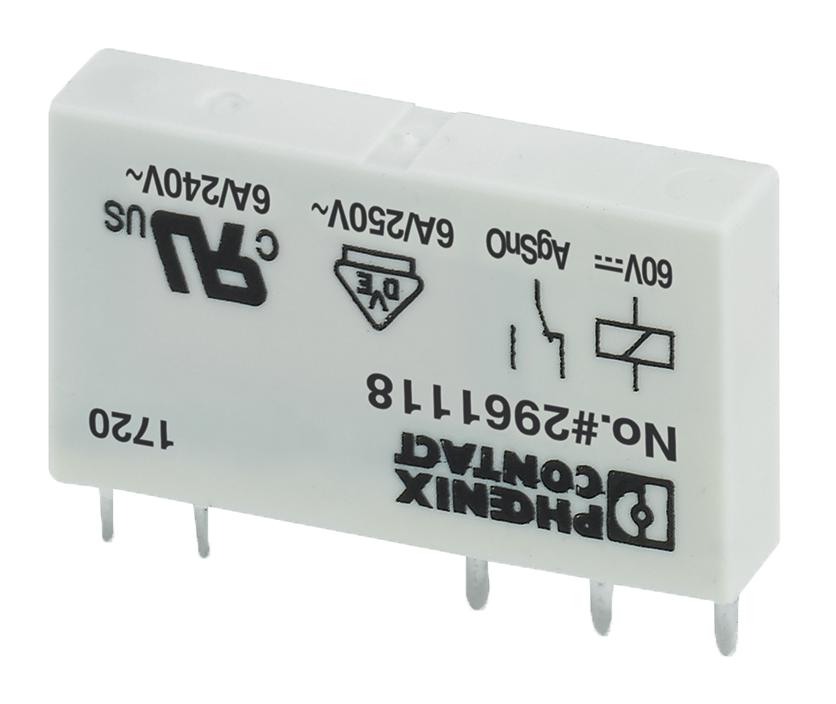

2961118 Relay, SPDT, 250VAC, 6a Phoenix Contact

PHOENIX CONTACTSKU: 2961118 Order code: 2315537

Price:
Sale price€37,14

Tax included Shipping calculated at checkout

Stock:
In stock (783 units), ready to be shipped

Documents et téléchargements

Description

PHOENIX CONTACT - 2961118 - General Purpose Relay, REL-MR Series, Power, Non Latching, SPDT, 60 VDC, 6 A

  • Contact Configuration: SPDT
  • Coil Voltage: 60VDC
  • Contact Current: 6A
  • Product Range: REL-MR Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 250VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 20.5kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Current: 3mA
  • Coil Voltage VDC Nom: 60V
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 250V
  • External Depth: 15mm
  • External Height: 28mm
  • External Width: 5mm
  • Nom Operating Power: 18W
  • Relay Type: Power - General Purpose
