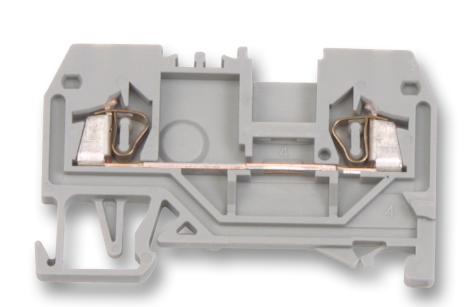

284-901 Terminal Block, DIN Rail, 2Pos, 8AWG Wago

WAGOSKU: 284-901 Order code: 1283437

Price:
Sale price€5,95

Tax included Shipping calculated at checkout

Stock:
In stock (342 units), ready to be shipped

Documents et téléchargements

Description

WAGO - 284-901 - DIN Rail Mount Terminal Block, 2 Ways, 24 AWG, 8 AWG, 10 mm², Clamp, 57 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 24AWG
  • Wire Size AWG Max: 8AWG
  • Conductor Area CSA: 10mm²
  • Wire Connection Method: Clamp
  • Rated Current: 57A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: 284 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Grey
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Width: 10mm
  • Pitch Spacing: 10mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 10mm²
  • Wire Area Size Min: 0.2mm²
  • Working Voltage: 800V
