281695-5 Header, THT, Vertical, 2.54mm, 5WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU: 281695-5 Order code: 1205986

Price:
Sale price€1,85

Tax included Shipping calculated at checkout

Stock:
In stock (8503 units), ready to be shipped

Documents et téléchargements

Description

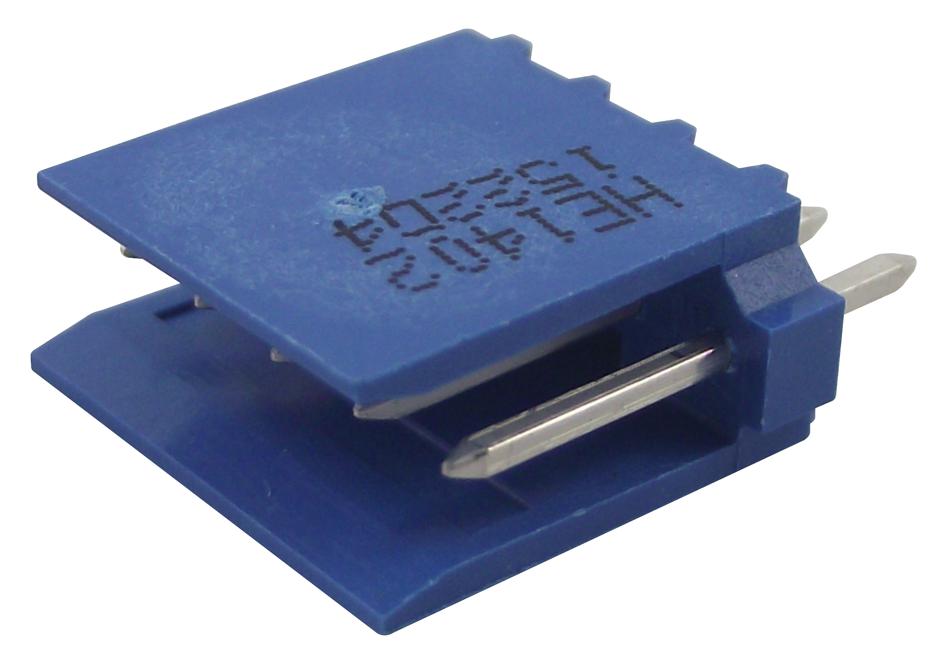

AMP - TE CONNECTIVITY - 281695-5 - Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows, 5 Contacts, Through Hole Straight

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 5Contacts
  • Gender: Header
  • Product Range: AMPMODU HE14 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: HE, NFC
  • Colour: Blue
  • Contact Resistance: 30mohm
  • Current Rating: 3A
  • De-mating Force: 3N
  • External Length / Height: 12.7mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Glass Filled Polyester
  • No. of Mating Cycles: 30
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • PCB Hole Diameter: 1mm
  • Working Voltage: 500V
