260-336 Terminal Block, DIN Rail, 4Pos, 16AWG Wago

WAGOSKU: 260-336 Order code: 1283500

Price:
Sale price€1,35

Tax included Shipping calculated at checkout

Stock:
In stock (480 units), ready to be shipped

Documents et téléchargements

Description

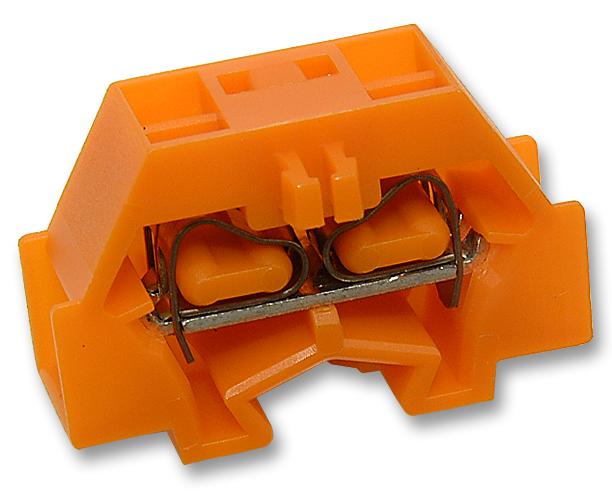

WAGO - 260-336 - DIN Rail Mount Terminal Block, 4 Ways, 28 AWG, 16 AWG, 1.5 mm², Clamp, 18 A

  • No. of Positions: 4Ways
  • Wire Size AWG Min: 28AWG
  • Wire Size AWG Max: 16AWG
  • Conductor Area CSA: 1.5mm²
  • Wire Connection Method: Clamp
  • Rated Current: 18A
  • Rated Voltage: 400V
  • No. of Levels: 1
  • Product Range: 260 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Orange
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Width: 8mm
  • Outer Insulation Strip Length: 8mm
  • Pitch Spacing: 8mm
  • Voltage Rating VAC: 400V
  • Wire Area Size Max: 1.5mm²
  • Wire Area Size Min: 0.08mm²
