Description

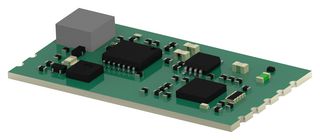

TE CONNECTIVITY - 2316851-1 - Sensor Module, AmbiMate, MS4 Series, PIR, Light, Temperature, Humidity, Castellation
- Kit Application Type: Sensor
- Silicon Manufacturer: TE Connectivity
- Silicon Core Number: -
- Application Sub Type: Sensing and Control
- Kit Contents: Board
- Product Range: Ambimate MS4 Series
- SVHC: No SVHC (15-Jan-2019)
- Humidity Range: 5% to 95% Relative Humidity
- Operating Temperature Max: 50°C
- Operating Temperature Min: -5°C
- Response Time: 0.5s
- Sensing Accuracy: 2%
- Sensitivity: -25dBV to -19dBV
- Sensor Output: I2C Digital
- Sensor Terminals: SMD
- Supply Voltage Max: 3.5VDC
- Supply Voltage Min: 3.1VDC
