2226A-03 Crimp Housing, 1 Row, 3 Way multicomp Pro

MULTICOMP PROSKU: 2226A-03 Order code: 1593507

Price:
Sale price€0,05

Tax included Shipping calculated at checkout

Stock:
In stock (3507 units), ready to be shipped

Documents et téléchargements

Description

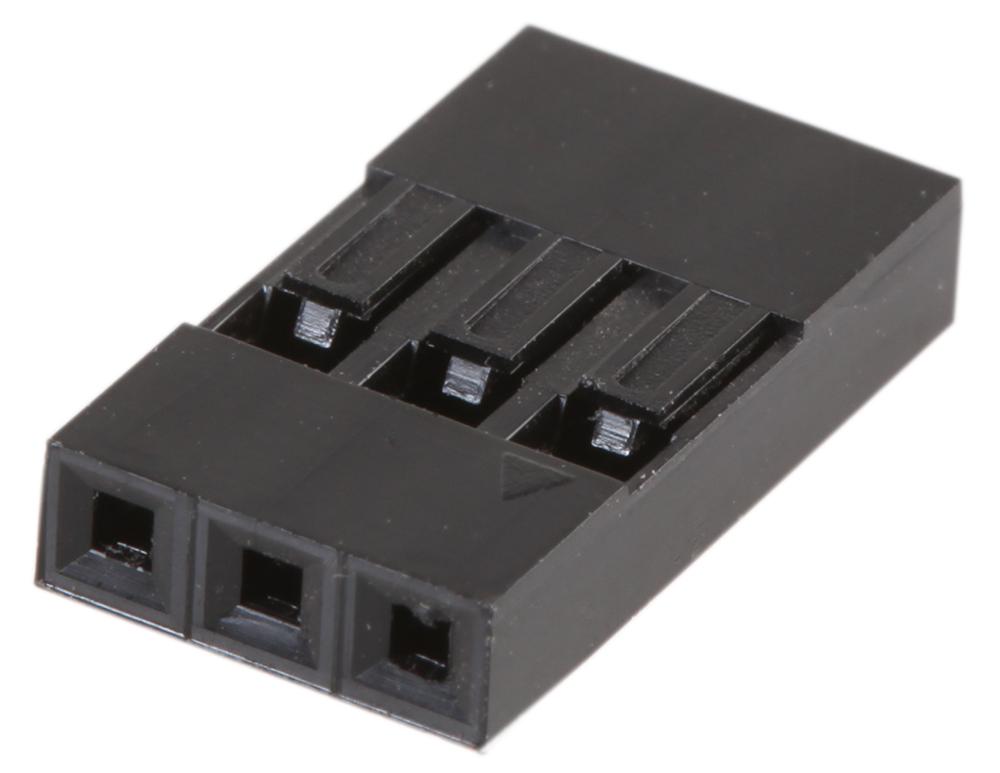

MULTICOMP PRO - 2226A-03 - Connector Housing, 2226, Receptacle, 3 Ways, 2.54 mm

  • Product Range: 2226 Series
  • Gender: Receptacle
  • No. of Positions: 3Ways
  • Pitch Spacing: 2.54mm
  • For Use With: -
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: Crimp
  • Contact Termination Type: Crimp
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 2.54mm
  • No. of Contacts: 3Contacts
  • No. of Rows: 1Rows
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -25°C
  • Termination Method: Crimp
  • Voltage Rating VAC: 250V
  • Wire Size AWG Max: 24AWG
  • Wire Size AWG Min: 28AWG
  • Withstand Voltage: 600V
