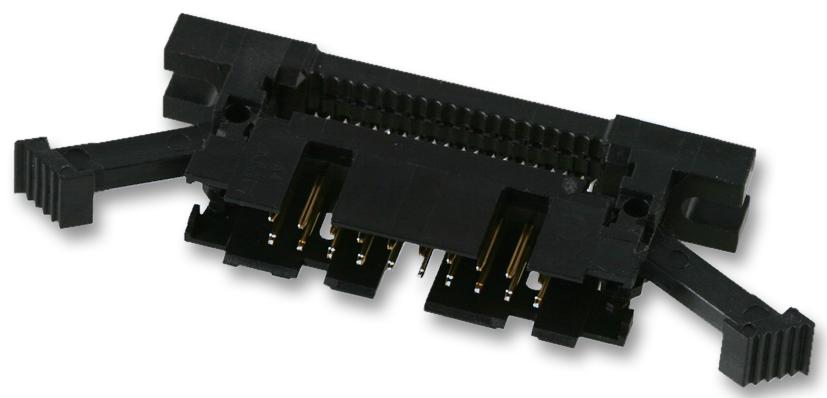

2-111506-4 Header, IDC, Latched, 40WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU: 2-111506-4 Order code: 1098630

Price:
Sale price€22,58

Tax included Shipping calculated at checkout

Stock:
In stock (225 units), ready to be shipped

Documents et téléchargements

Description

AMP - TE CONNECTIVITY - 2-111506-4 - IDC Connector, Latched, IDC Plug, Male, 2.54 mm, 2 Row, 40 Contacts, Cable Mount

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 40Contacts
  • Gender: Plug
  • Product Range: AMP-LATCH Universal I/O Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, UL
  • Contact Current Rating: 1A
  • Contact Resistance: 15mohm
  • Current Rating: 1A
  • No. of Mating Cycles: 150
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -65°C
  • Withstand Voltage: 1000V
