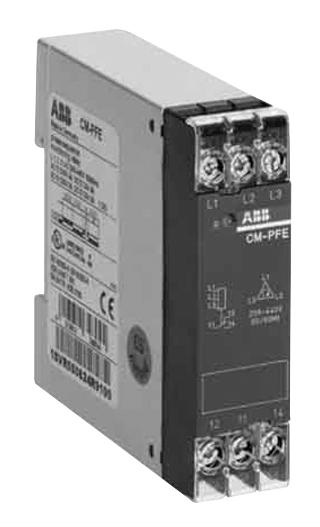

1SVR550824R9100 Relay, 3 PH, SPDT, 208VAC, 440VAC ABB

ABBSKU: 1SVR550824R9100 Order code: 1895998

Price:
Sale price€152,25

Tax included Shipping calculated at checkout

Stock:
In stock (13 units), ready to be shipped

Documents et téléchargements

Description

ABB - 1SVR550824R9100 - Phase Monitoring Relay, Single Function, CM-PFE, SPDT, 4 A, DIN Rail, Screw, 250 V

  • Product Range: CM-PFE Series
  • Contact Configuration: SPDT
  • Contact Current: 4A
  • Relay Mounting: DIN Rail
  • Relay Terminals: Screw
  • Switching Voltage Max: 250V
  • Supply Voltage Max: 440VAC
  • Phase Type: 3 Phase
  • Power Consumption: 15VA
  • Phase Monitoring Range Min: 208VAC
  • Phase Monitoring Range Max: 440VAC
  • Approval Bodies: GOST, UL
  • Approvals & Standards: UL
  • Contact Current AC Max: 4A
  • Contact Current DC Max: 4A
  • External Depth: 78.5mm
  • External Length / Height: 78mm
  • External Width: 22.5mm
  • IP / NEMA Rating: IP50
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
