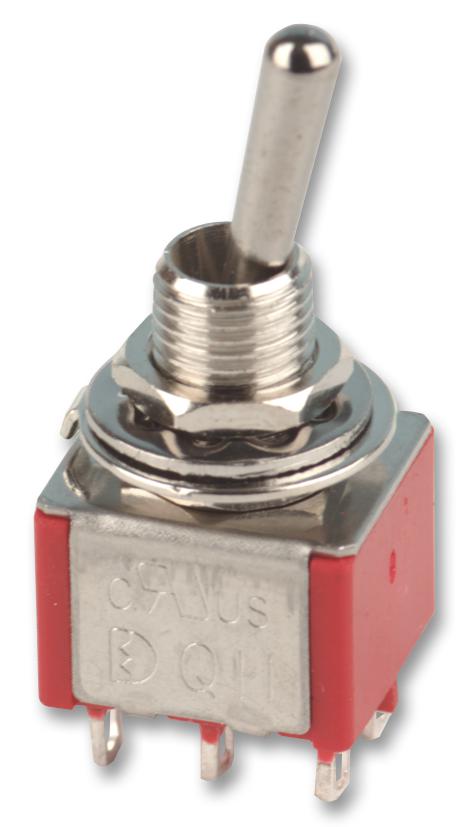

MULTICOMP PRO - 1MD4T1B1M1QE - Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, 1M, Panel Mount, 5 A
- Switch Operation: (On)-Off-(On)
 - Contact Configuration: DPDT
 - Illumination: Non Illuminated
 - Product Range: 1M Series
 - Contact Current Max: 5A
 - Switch Mounting: Panel
 - Contact Voltage AC Nom: 250V
 - Switch Terminals: Solder
 - Contact Voltage DC Nom: 28V
 - SVHC: No SVHC (15-Jan-2018)
 - Actuation Type: Bat
 - Bush Thread Length: 8.89mm
 - Contact Current @ Contact Voltage AC Max: 2A
 - Contact Current @ Contact Voltage DC Max: 5A
 - Contact Current AC Max: 2A
 - Contact Current DC Max: 5A
 - Contact Resistance: 10mohm
 - Contact Voltage AC Max: 250V
 - Contact Voltage DC Max: 125V
 - External Depth: 10.54mm
 - External Length / Height: 12.7mm
 - External Width: 11.43cm
 - Flammability Rating: UL94V-0
 - Height: 12.7mm
 - Lever Length: 10.41mm
 - No. of Electrical Operations: 40000
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -30°C
 - Panel Cutout Diameter: 6.35mm
 - Switching Power Max: 0.4VA
 - Tab Blade Thickness: 0.76mm
 - Thread Size: 1/4" x 40 NS
