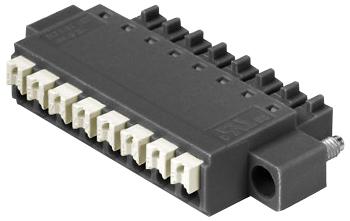

WEIDMULLER - 1971870000 - Pluggable Terminal Block, 3.81 mm, 10 Ways, 26AWG to 16AWG, 1.5 mm², Push In, 17.5 A
- Pitch Spacing: 3.81mm
- No. of Positions: 10Ways
- Wire Size (AWG): 26AWG to 16AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Push In
- Rated Current: 17.5A
- Rated Voltage: 320V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: Cable Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 26AWG
