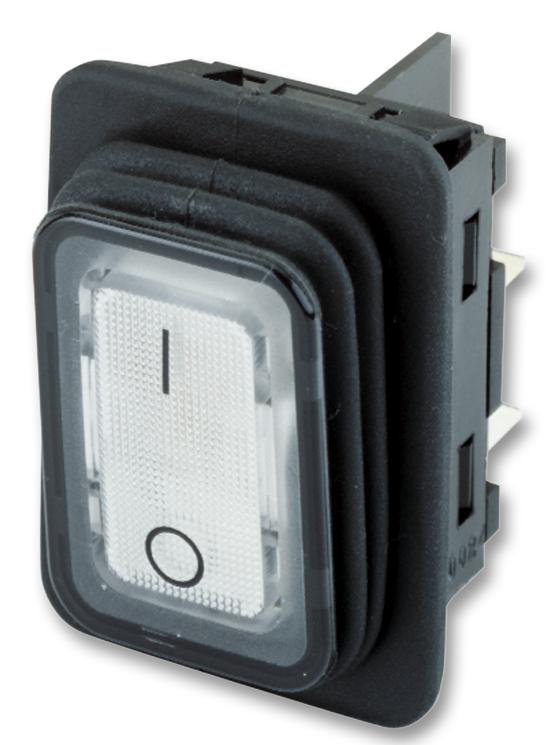

MARQUARDT - 1935.3113 - Rocker Switch, Off-On, DPST, Illuminated, Panel Mount, Transparent, 1930
- Illumination: Illuminated
- Contact Configuration: DPST
- Switch Operation: Off-On
- Actuator / Cap Colour: Transparent
- Switch Mounting: Panel
- Contact Current Max: 20A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Product Range: 1930 Series
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, ENEC, UL
- Colour: Black
- Contact Current AC Max: 16A
- Contact Current Rating: 20A
- Contact Voltage AC Max: 250V
- External Depth: 26.65mm
- External Length / Height: 36mm
- External Width: 27.4mm
- IP / NEMA Rating: IP65
- Illumination Colour: White
- Operating Temperature Max: 105°C
- Operating Temperature Min: -30°C
- Panel Cutout Size: 30 x 22 mm
- Panel Cutout Width: 22mm
- Panel Cutout length: 30mm
- Tab Width: 6.3mm
