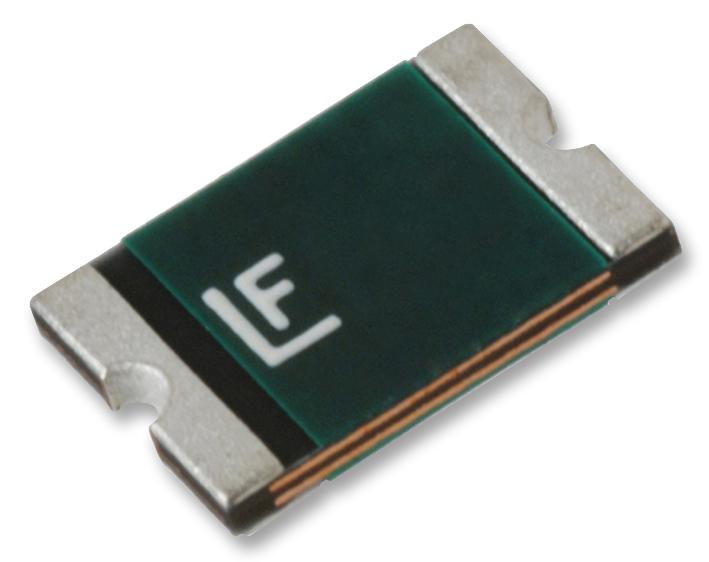

LITTELFUSE - 1812L110/16DR - Resettable Fuse, PPTC, 1812 (4532 Metric), POLYFUSE 1812L, 16 VDC, 1.1 A, 1.95 A, 0.3 s
- Thermistor Mounting: SMD
- Product Range: POLYFUSE 1812L Series
- Holding Current: 1.1A
- Tripping Current: 1.95A
- Voltage Rating: 16VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Approval Bodies: TUV
- Approval Category: UL Recognised
- Carrying Current Max: 100A
- External Depth: 3.41mm
- External Length / Height: 1.25mm
- External Width: 4.73mm
- Holding Current Max Ih: 1.1A
- Initial Resistance Max: 0.18ohm
- Initial Resistance Min: 0.06ohm
- Operating Voltage: 16V
- PTC Fuse Case Style: 1812 [4532 Metric]
- Power Dissipation Pd: 0.8W
- Resistance: 0.12ohm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC
