Description

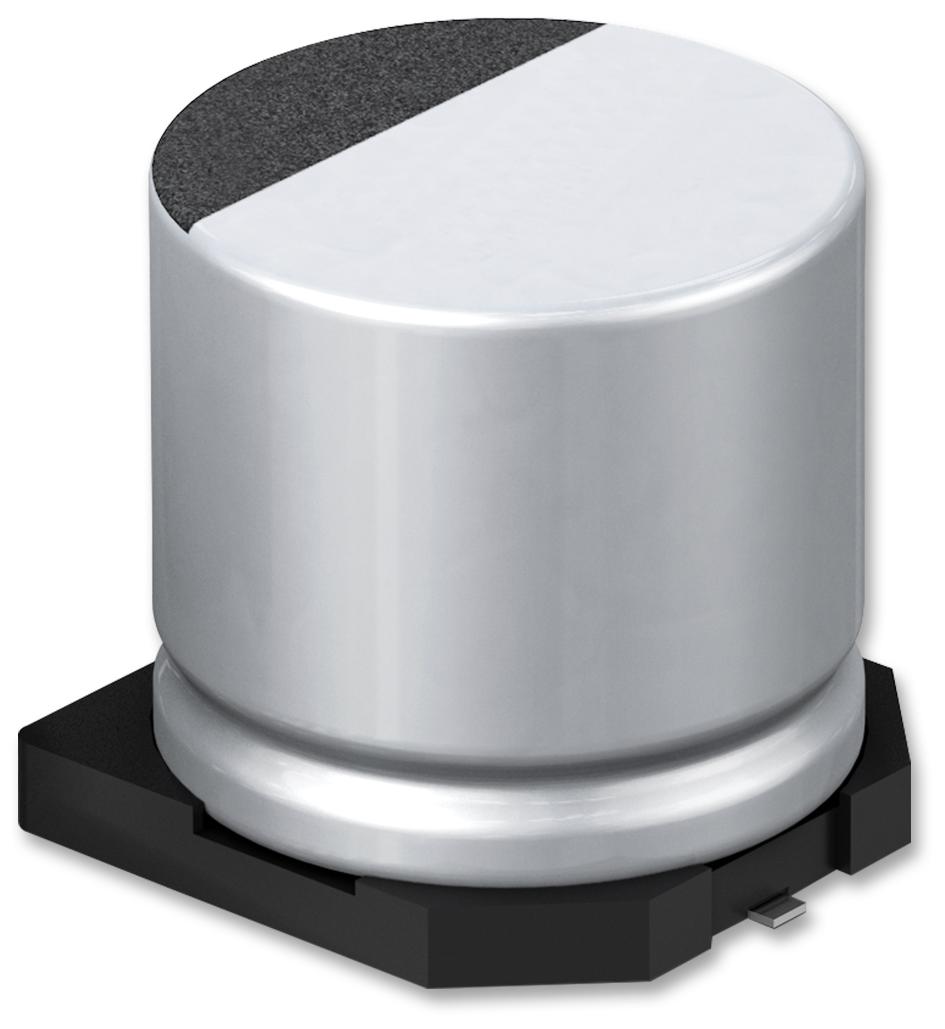

RUBYCON - 16TRV330M8X10.5 - SMD Aluminium Electrolytic Capacitor, Radial Can, 330 µF, 16 V, 0.15 ohm, 8000 hours @ 105°C
- AE Capacitor Case: Radial Can
- Capacitance: 330µF
- Voltage Rating: 16V
- ESR: 0.15ohm
- Product Range: TRV Series
- Lifetime @ Temperature: 8000 hours @ 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 600mA
- Diameter: 8mm
- Height: 10.5mm
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
