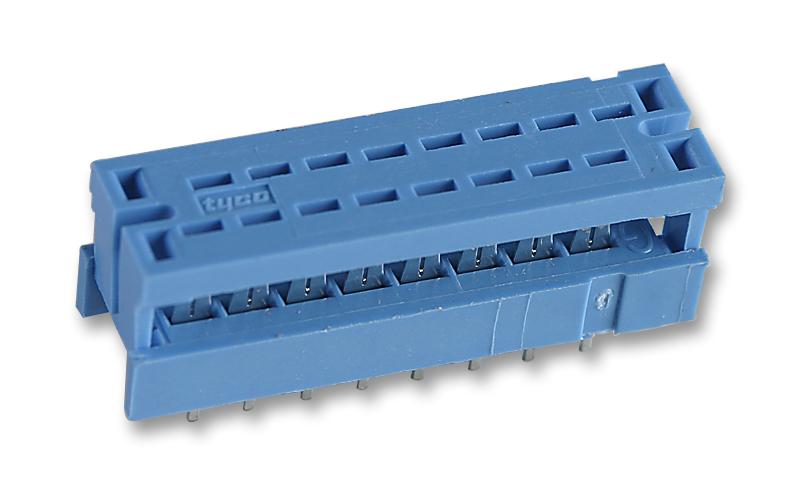

AMP - TE CONNECTIVITY - 1658525-8 - IDC Connector, Transition, IDC Plug, Male, 2.54 mm, 2 Row, 16 Contacts, Cable Mount
- Pitch Spacing: 2.54mm
- No. of Contacts: 16Contacts
- Gender: Plug
- Product Range: 622 Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
- SVHC: No SVHC (15-Jan-2018)
- Current Rating: 1A
- External Depth: 7.11mm
- External Length / Height: 6.5mm
- Flammability Rating: UL94V-0
- IDC Cable Pitch: 0.05"
- Insulation Resistance: 1Gohm
- Lead Length: 2.5mm
- Material: Glass reinforced thermo plastic
- No. of Mating Cycles: 200
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 0.9mm
- Row Pitch: 2.54mm
- Withstand Voltage: 500V
