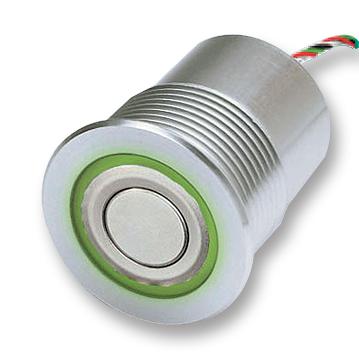

SCHURTER - 1241.6403 - Vandal Resistant Switch, MCS, 30.3 mm, SPST-NO, Off-(On), Flush, Natural
- Product Range: MCS Series
- Contact Configuration: SPST-NO
- Switch Operation: Off-(On)
- Contact Current Max: 80mA
- Contact Voltage AC Nom: -
- Illumination Colour: Green, Red
- Contact Voltage DC Nom: 24V
- Switch Terminals: Wire Leaded
- SVHC: No SVHC (27-Jun-2018)
- Actuator / Cap Colour: Natural
- Behind Panel Depth: 33.6mm
- Bezel Diameter: 33.75mm
- Colour: Red / Green
- Contact Current DC Max: 125mA
- Contact Voltage DC Min: 24mV
- Contact Voltage VDC: 48V
- External Length / Height: 33.6mm
- Height Above Panel: 0.5mm
- IP Rating: IP65
- Insulation Resistance: 100Mohm
- No. of Mechanical Operations: 10
- Operating Force: 3.7N
- Operating Temperature Max: 60°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 30.3mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Anti-Vandal
- Stroke Length Max: 0.4mm
- Switch Mounting: Panel
