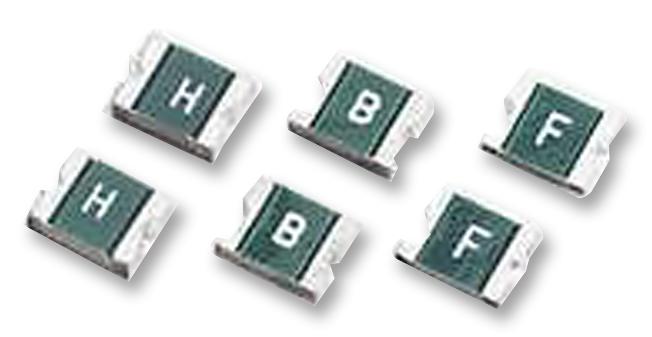

LITTELFUSE - 1210L020WR - Resettable Fuse, PPTC, 1210 (3225 Metric), POLYFUSE 1210L, 30 VDC, 200 mA, 400 mA, 0.02 s
- Thermistor Mounting: SMD
- Product Range: POLYFUSE 1210L Series
- Holding Current: 200mA
- Tripping Current: 400mA
- Voltage Rating: 30VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Approval Bodies: TUV
- Approval Category: UL Recognised
- Carrying Current Max: 10A
- Current Max: 10A
- External Depth: 2.8mm
- External Length / Height: 1mm
- External Width: 3.43mm
- Holding Current Max Ih: 200mA
- Initial Resistance Max: 5ohm
- Initial Resistance Min: 0.8ohm
- Operating Voltage: 30V
- PTC Fuse Case Style: 1210 [3225 Metric]
- Power Dissipation Pd: 0.6W
- Resistance: 2.9ohm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC
