Description

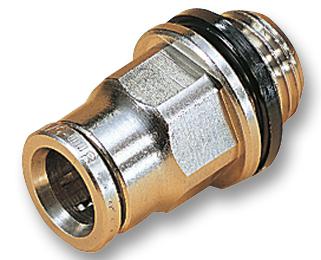

NORGREN - 102250828 - Pneumatic Fitting, Compact Push In, Push-In Straight Adaptor, G1/4, 18 bar, 8 mm, Brass, PNEUFIT 10
- Fitting Type: Straight Adaptor
- Bore Size: 8mm
- External Diameter: 8mm
- Thread Size: 1/4
- Thread Size - Metric: -
- Product Range: -
- Bore Diameter Max: 8mm
- Material: Brass
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Outer Diameter: 8mm
- Overall Length: 28.2mm
- Pressure Max: 18bar
