Description

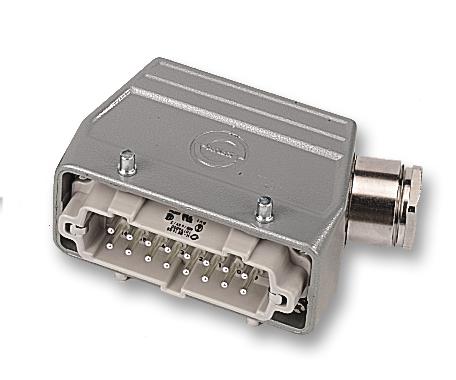

EPIC - 10.1130+10.1960+12.9545 - Heavy Duty Connector, Side Entry, EPIC Series, Panel Mount, Plug, 24 Contacts, Pin, 2 Rows
- Product Range: EPIC Series
 - Connector Mounting: Panel Mount
 - Gender: Plug
 - No. of Contacts: 24Contacts
 - Contact Gender: Pin
 - No. of Rows: 2Rows
 - Contact Termination Type: Screw
 - Connector Shell Size: -
 - Contact Material: Copper Alloy
 - Contact Plating: Silver Plated Contacts
 - SVHC: No SVHC (15-Jan-2019)
 - Approval Bodies: CSA, UL, VDE
 - Connector Type: Rectangular Power
 - Contact Resistance: 2mohm
 - Contact Termination: Screw
 - Current Rating: 16A
 - IP / NEMA Rating: IP65
 - No. of Mating Cycles: 100
 - Operating Temperature Max: 125°C
 - Operating Temperature Min: -40°C
 - Termination Method: Screw
 - Voltage Rating VAC: 400V
 - Wire Area Size Max: 2.5mm²
 - Wire Area Size Min: 0.5mm²
 - Working Voltage: 400V
