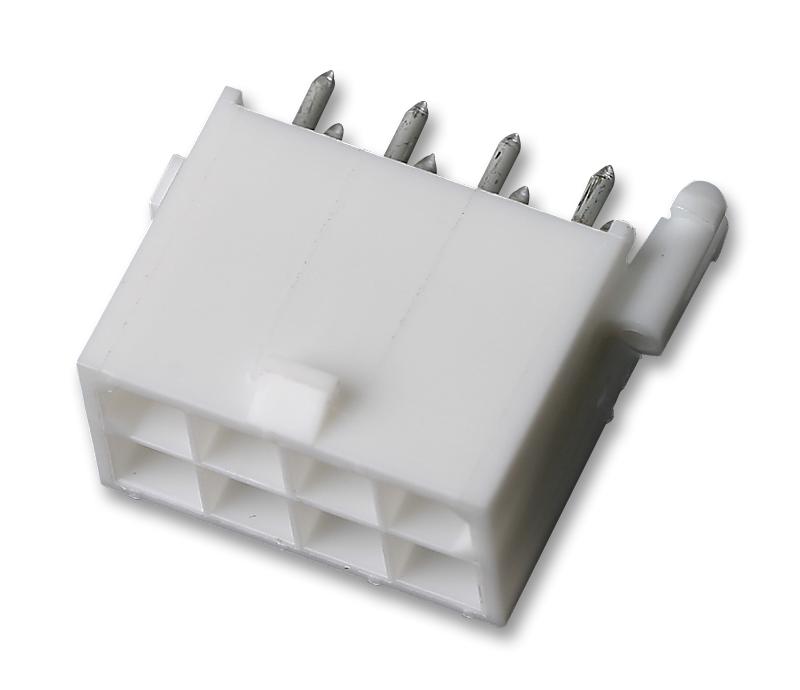

AMP - TE CONNECTIVITY - 1-794065-1 - Pin Header, Wire-to-Board, 4.14 mm, 2 Rows, 8 Contacts, Through Hole Straight
- Pitch Spacing: 4.14mm
- No. of Contacts: 8Contacts
- Gender: Header
- Product Range: Mini Universal MATE-N-LOK Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Colour: White
- Current Rating: 9.5A
- External Depth: 9.83mm
- External Length / Height: 13.49mm
- External Width: 18.11mm
- Fixing Hole Diameter: 3.18mm
- Flammability Rating: UL94V-0
- Material: Nylon
- PCB Hole Diameter: 1.4mm
- Voltage Rating VAC: 600V
