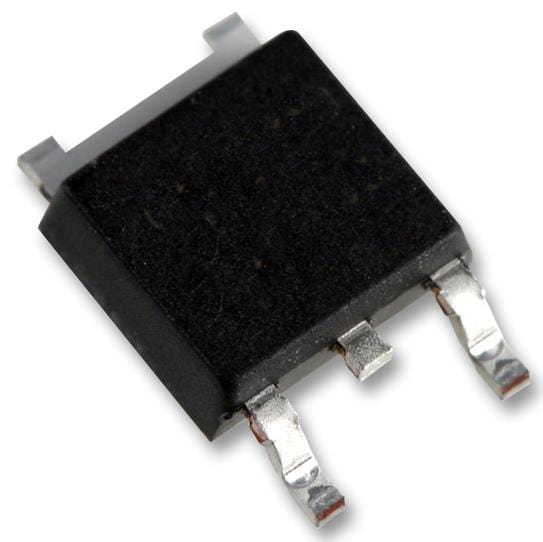

DIODES INC. - ZXMP6A18K - Power MOSFET, P Channel, 60 V, 10.4 A, 0.055 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 10.4A
- Drain Source Voltage Vds: -60V
- On Resistance Rds(on): 0.055ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -1V
- Power Dissipation Pd: 4.3W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Alternate Case Style: TO-252
- Current Id Max: -10.4A
- Current Temperature: 25°C
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- On State Resistance Max: 55mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Disspation Pd for 50mm sq PCB: 4.3W
- Pulse Current Idm: 37.5A
- SMD Marking: ZXMP 6A18
- Termination Type: Surface Mount Device
- Voltage Vds Typ: -60V
- Voltage Vgs Max: -20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 1V
