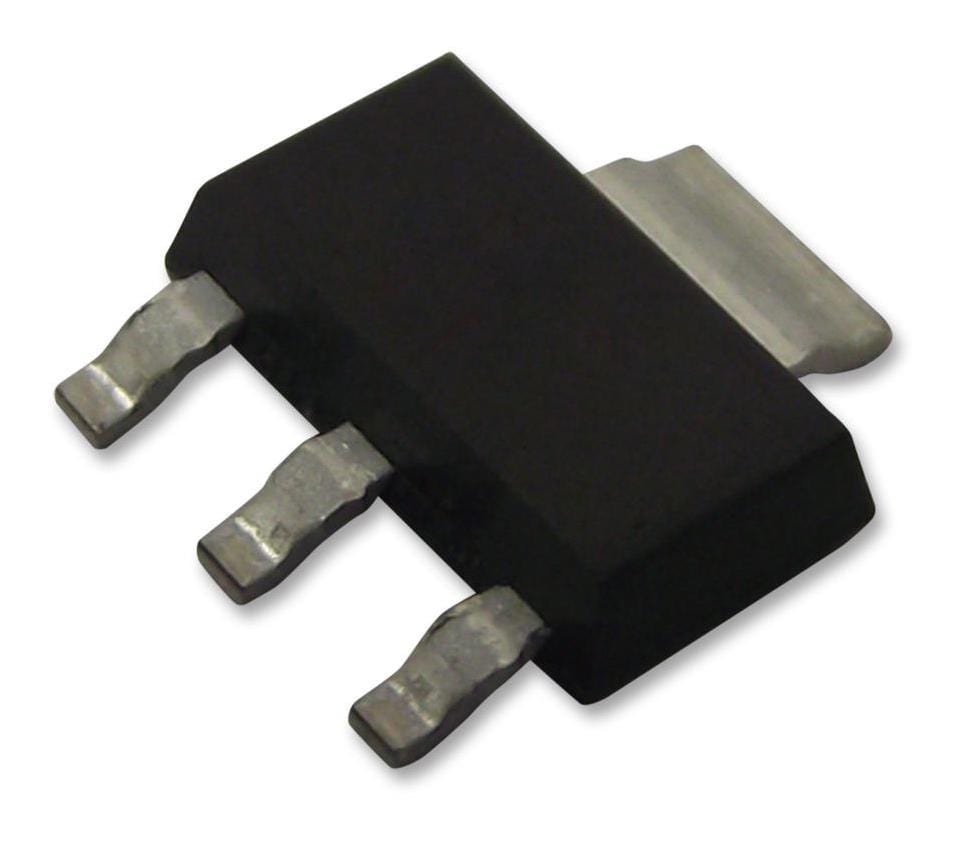

ZXMN7A11G MOSFET, N, Sot-223 Diodes Inc.

DIODES INC.UGS :ZXMN7A11G Code de commande:1251240

Prix:
Prix ​​promotionnel€1,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (377 unité)

Documents et téléchargements

description

DIODES INC. - ZXMN7A11G - Power MOSFET, N Channel, 70 V, 3.8 A, 0.13 ohm, SOT-223, Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 3.8A
  • Drain Source Voltage Vds: 70V
  • On Resistance Rds(on): 0.13ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 1V
  • Power Dissipation Pd: 3.9W
  • Transistor Case Style: SOT-223
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (15-Jan-2019)
  • Application Code: SWLR
  • Current Id Max: 3.8A
  • Current Temperature: 25°C
  • External Depth: 7.3mm
  • External Length / Height: 1.7mm
  • External Width: 6.7mm
  • Full Power Rating Temperature: 25°C
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pulse Current Idm: 10A
  • Tape Width: 12mm
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 70V
  • Voltage Vgs Max: 20V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Min: 1V
