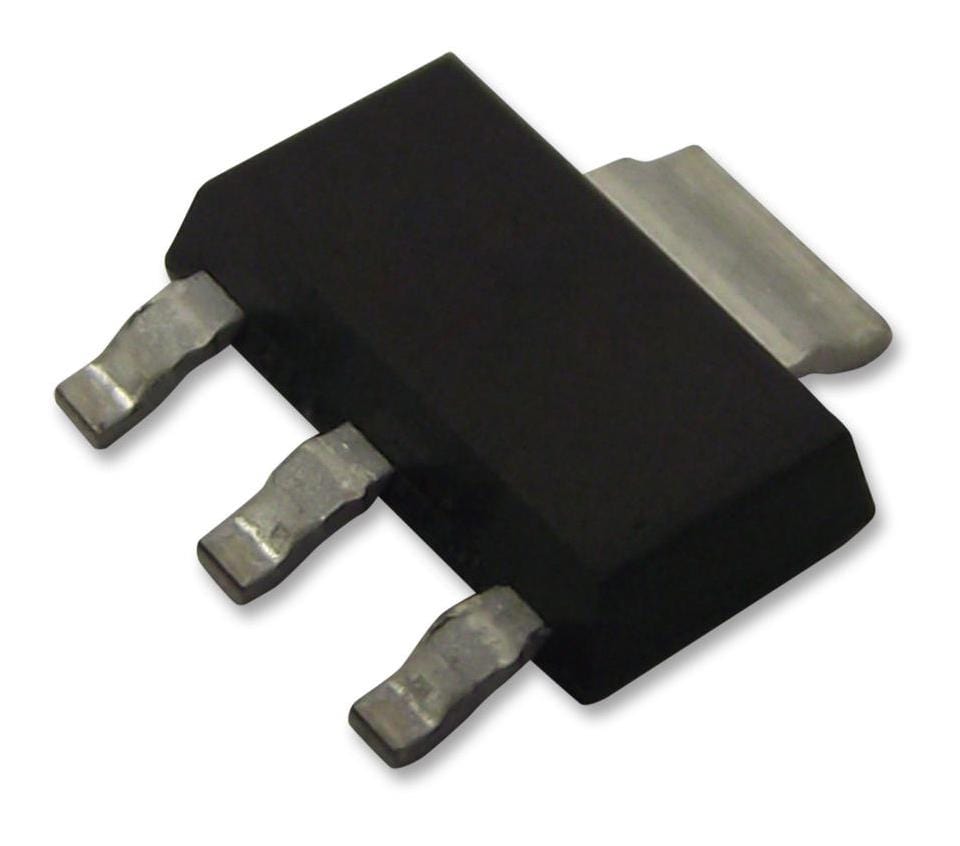

DIODES INC. - ZXMN10A11G - Power MOSFET, N Channel, 100 V, 1.8 A, 0.6 ohm, SOT-223, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 1.8A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.6ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 3.9W
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Current Id Max: 2.4A
- Current Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- No. of Transistors: 1
- On State Resistance Max: 600mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 2W
- Pulse Current Idm: 5.8A
- SMD Marking: ZXMN10A11
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
- Voltage Vgs th Min: 2V
