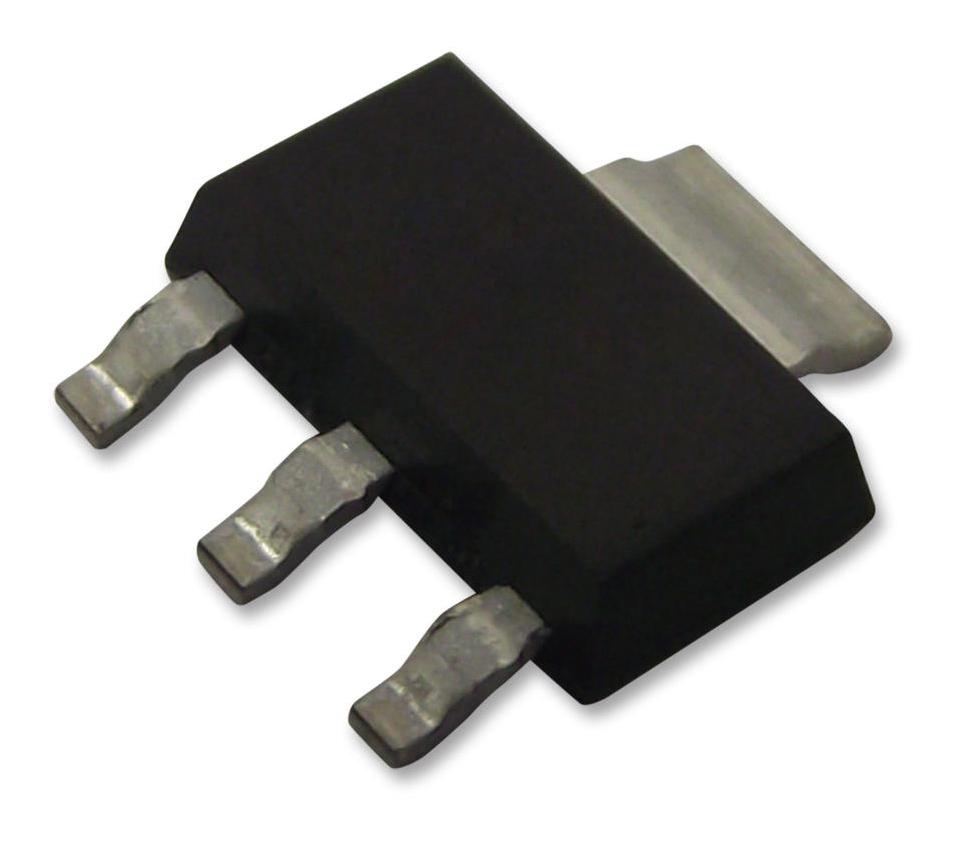

DIODES INC. - ZVP2106G - Power MOSFET, P Channel, 60 V, 450 mA, 5 ohm, SOT-223, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 450mA
- Drain Source Voltage Vds: -60V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -3.5V
- Power Dissipation Pd: 2W
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Current Id Max: 450mA
- Current Temperature: 25°C
- External Depth: 7.3mm
- External Length / Height: 1.7mm
- External Width: 6.7mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 2W
- Pulse Current Idm: 4A
- SMD Marking: ZVP2106
- Tape Width: 12mm
- Voltage Vds Typ: -60V
- Voltage Vgs Max: -3.5V
- Voltage Vgs Rds on Measurement: -10V
- Voltage Vgs th Max: -3.5V
