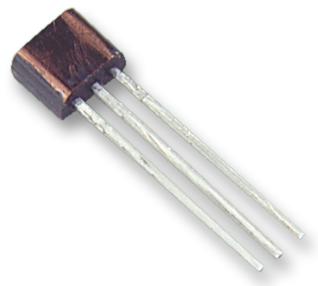

ZVP2106A MOSFET, P, -60V, -0.32A, E-Line Diodes Inc.

DIODES INC.UGS :ZVP2106A Code de commande:9525505

Prix:
Prix ​​promotionnel€1,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (15797 unité)

Documents et téléchargements

description

DIODES INC. - ZVP2106A - Power MOSFET, P Channel, 60 V, 280 mA, 4 ohm, TO-226AA, Through Hole

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: -280mA
  • Drain Source Voltage Vds: -60V
  • On Resistance Rds(on): 4ohm
  • Rds(on) Test Voltage Vgs: -10V
  • Threshold Voltage Vgs: -3.5V
  • Power Dissipation Pd: 700mW
  • Transistor Case Style: TO-226AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2019)
  • Current Id Max: 320mA
  • Current Temperature: 25°C
  • Device Marking: ZVP2106A
  • Full Power Rating Temperature: 25°C
  • Lead Spacing: 1.27mm
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 700mW
  • Pulse Current Idm: 5A
  • Voltage Vds Typ: -60V
  • Voltage Vgs Max: -3.5V
  • Voltage Vgs Rds on Measurement: -10V
