description

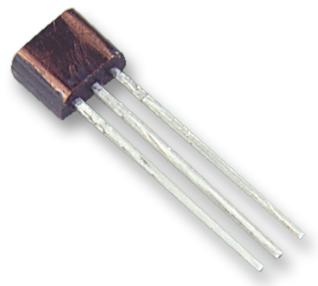

DIODES INC. - ZVNL120A - Power MOSFET, N Channel, 200 V, 180 mA, 10 ohm, E-Line, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 180mA
- Drain Source Voltage Vds: 200V
- On Resistance Rds(on): 10ohm
- Rds(on) Test Voltage Vgs: 5V
- Threshold Voltage Vgs: 1.5V
- Power Dissipation Pd: 700mW
- Transistor Case Style: E-Line
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: 180mA
- Current Temperature: 25°C
- Device Marking: ZVNL120A
- Full Power Rating Temperature: 25°C
- Lead Spacing: 1.27mm
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 700mW
- Pulse Current Idm: 2A
- Voltage Vds Typ: 200V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 5V
