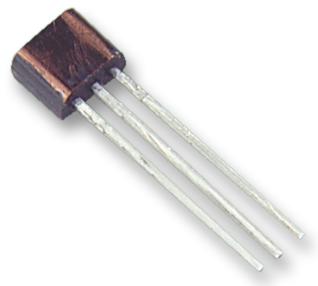

ZVN4424A MOSFET, N, Logic, E-Line Diodes Inc.

DIODES INC.UGS :ZVN4424A Code de commande:9526200

Prix:
Prix ​​promotionnel€2,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4628 unité)

Documents et téléchargements

description

DIODES INC. - ZVN4424A - Power MOSFET, N Channel, 240 V, 260 mA, 6 ohm, TO-226AA, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 260mA
  • Drain Source Voltage Vds: 240V
  • On Resistance Rds(on): 6ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 1.3V
  • Power Dissipation Pd: 570mW
  • Transistor Case Style: TO-226AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (15-Jan-2019)
  • Current Id Max: 260mA
  • Current Temperature: 25°C
  • Device Marking: ZVN4424A
  • Full Power Rating Temperature: 25°C
  • Lead Spacing: 1.27mm
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 750mW
  • Pulse Current Idm: 1A
  • Voltage Vds Typ: 240V
  • Voltage Vgs Max: 1.3V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Max: 1.8V
